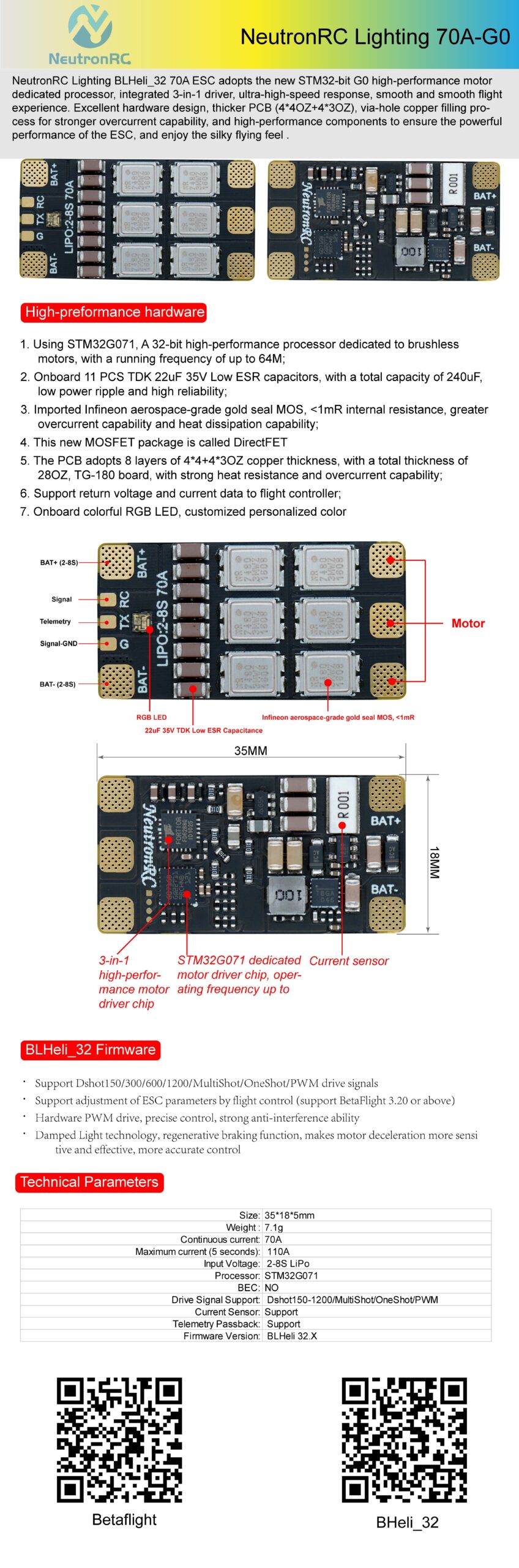

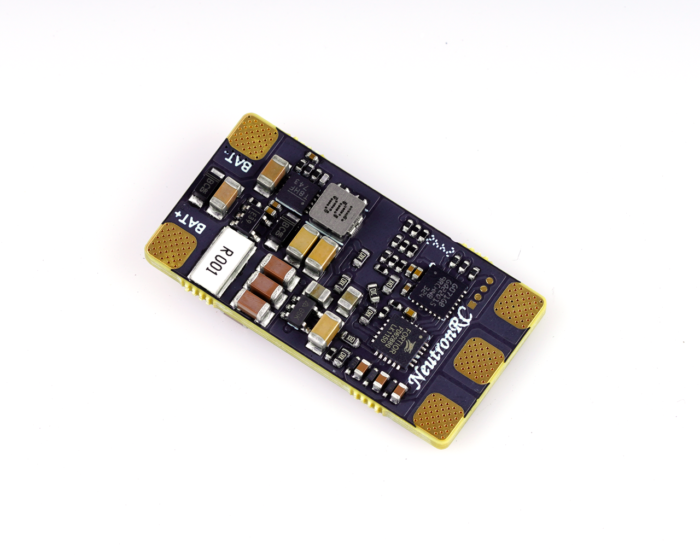

1. Using STM32G071, A 32-bit high-performance processor dedicated to brushless
motors, with a running frequency of up to 64M;

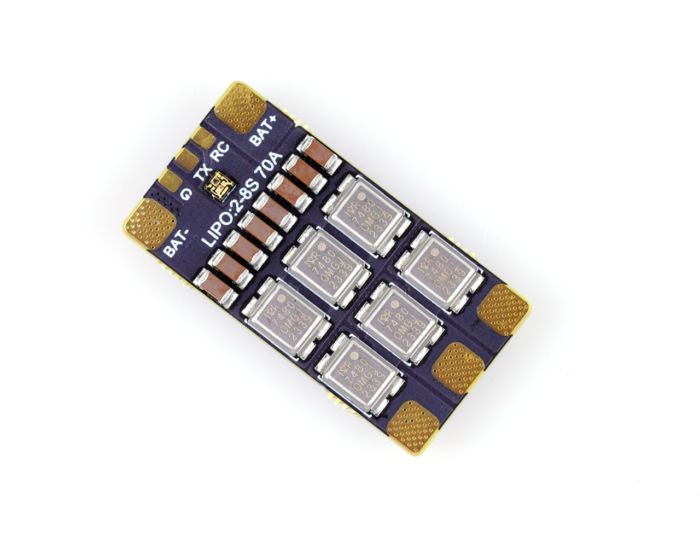

2. Onboard 11 PCS TDK 22uF 35V Low ESR capacitors, with a total capacity of 240uF,
low power ripple and high reliability;
3. Imported Infineon aerospace-grade gold seal MOS, <1mR internal resistance, greater
overcurrent capability and heat dissipation capability;
4. This new MOSFET package is called DirectFET
5. The PCB adopts 8 layers of 4*4+4*3OZ copper thickness, with a total thickness of
28OZ, TG-180 board, with strong heat resistance and overcurrent capability;
6. Support return voltage and current data to flight controller;
7. Onboard colorful RGB LED, customized personalized color;
AM32 firmware new version download address and corresponding target:
https://am32.ca/downloads
ESCAPE 32 Firmware address:
https://github.com/neoxic/ESCape32
