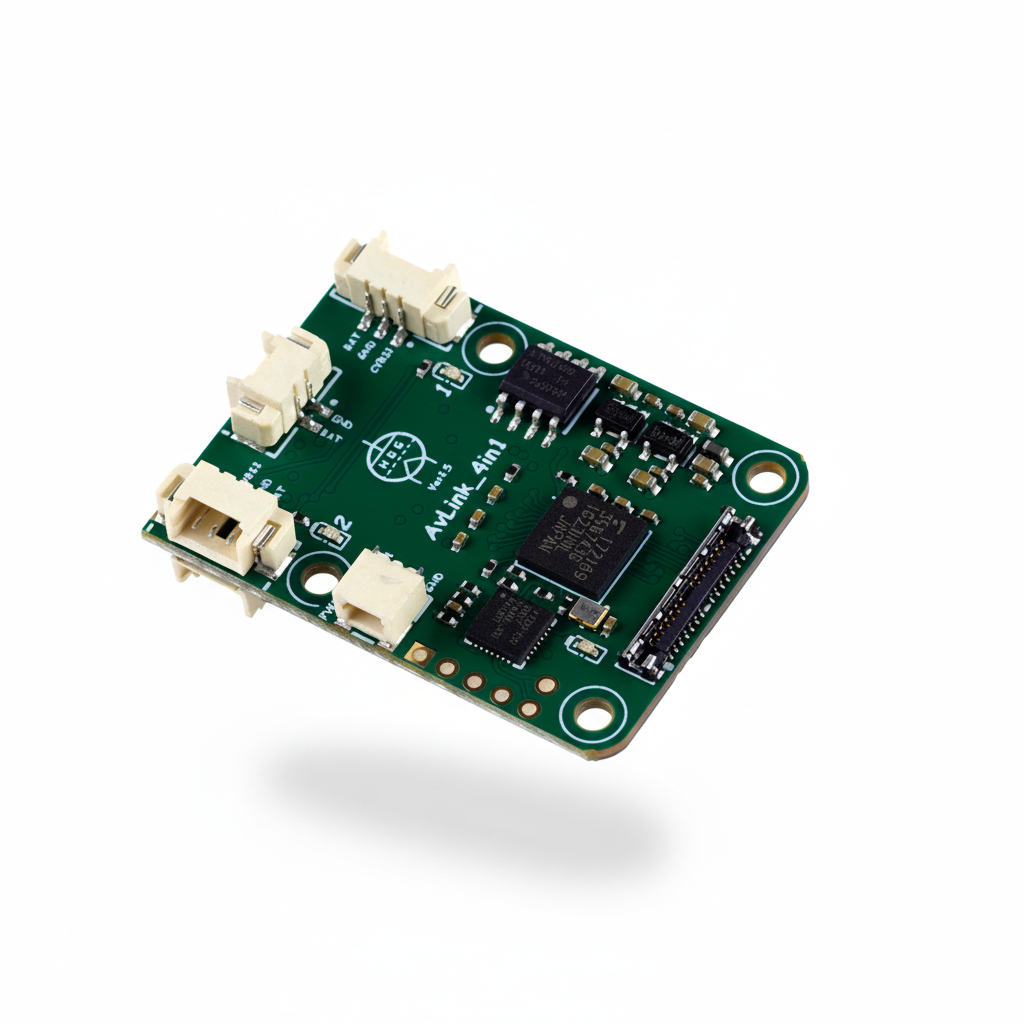

NeutronRC AvLink 4in1 Analog Video to Air Unit Conv&Switch Board

AvLink 4in1 Analog Video to Air Unit Conv&Switch Board

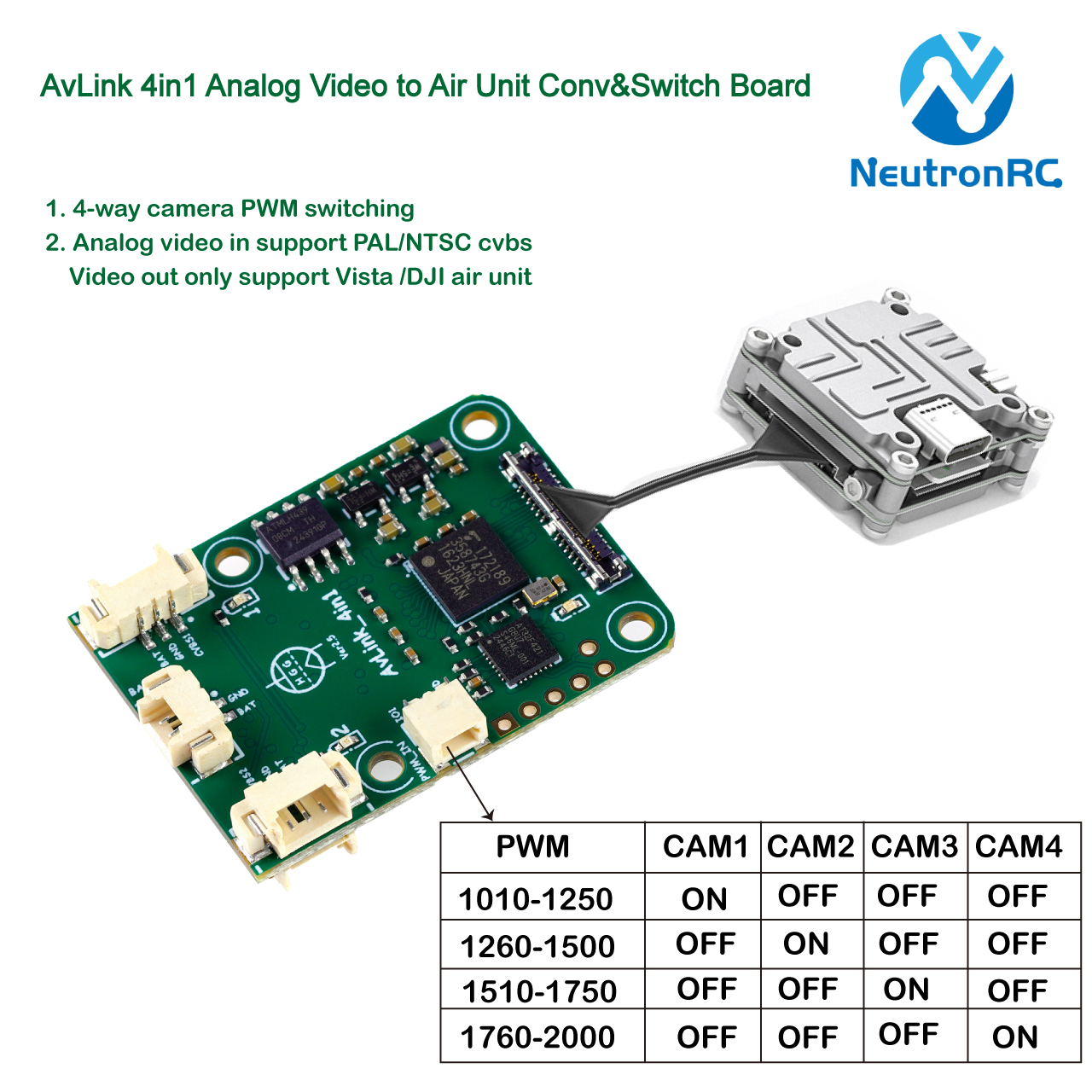

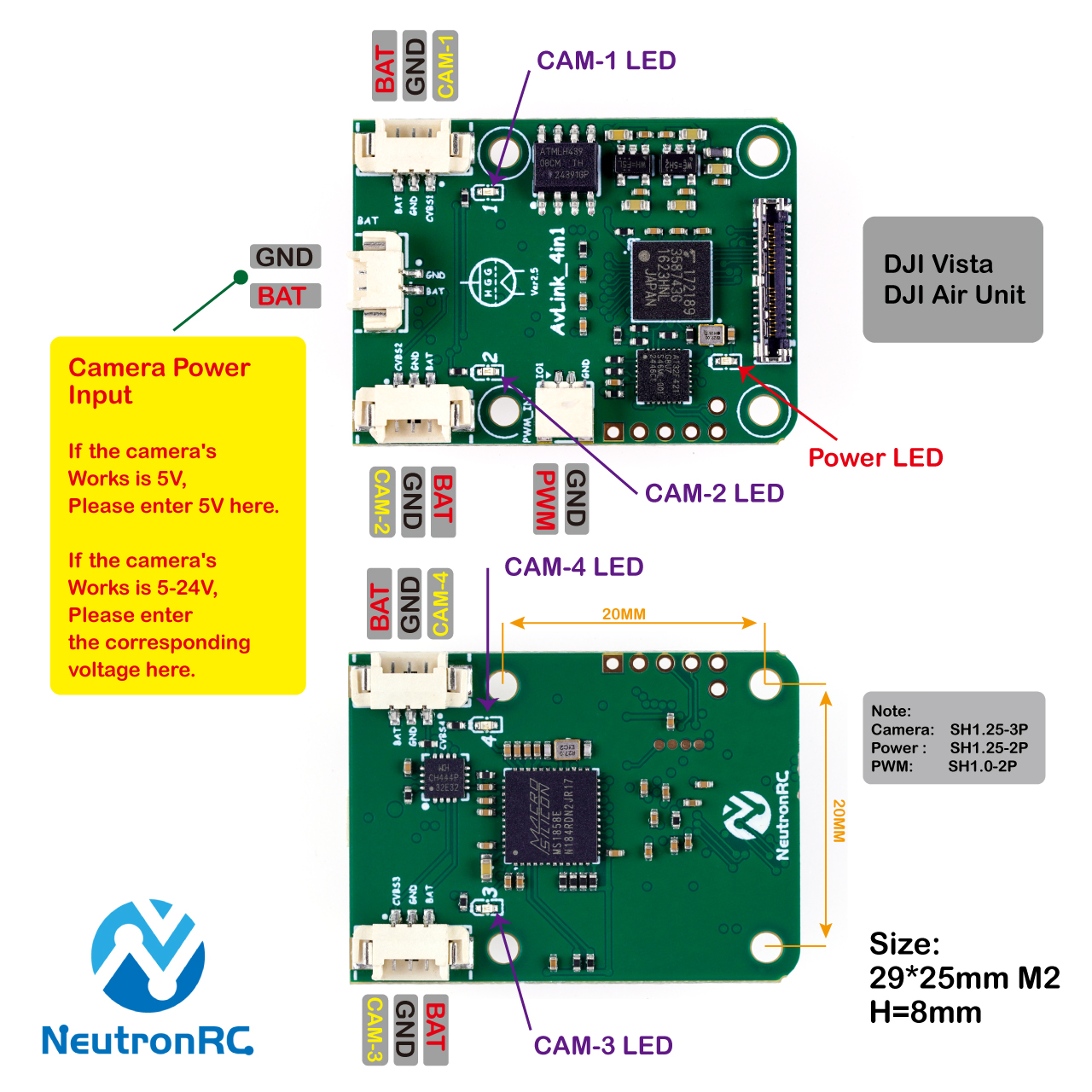

Analog video in support PAL/NTSC cvbs signal video out only support Vista /dji air unit

Any Supper DJI Vista/DJI Air Unit HD

Note:

  This product involves converting analog camera information to digital information, so its latency is relatively long, approximately 40-50ms. Combined with Vista’s own latency, the total latency is approximately 70-90ms. Therefore, please choose carefully if you intend to use it for racing.

V2 New Version Changes:

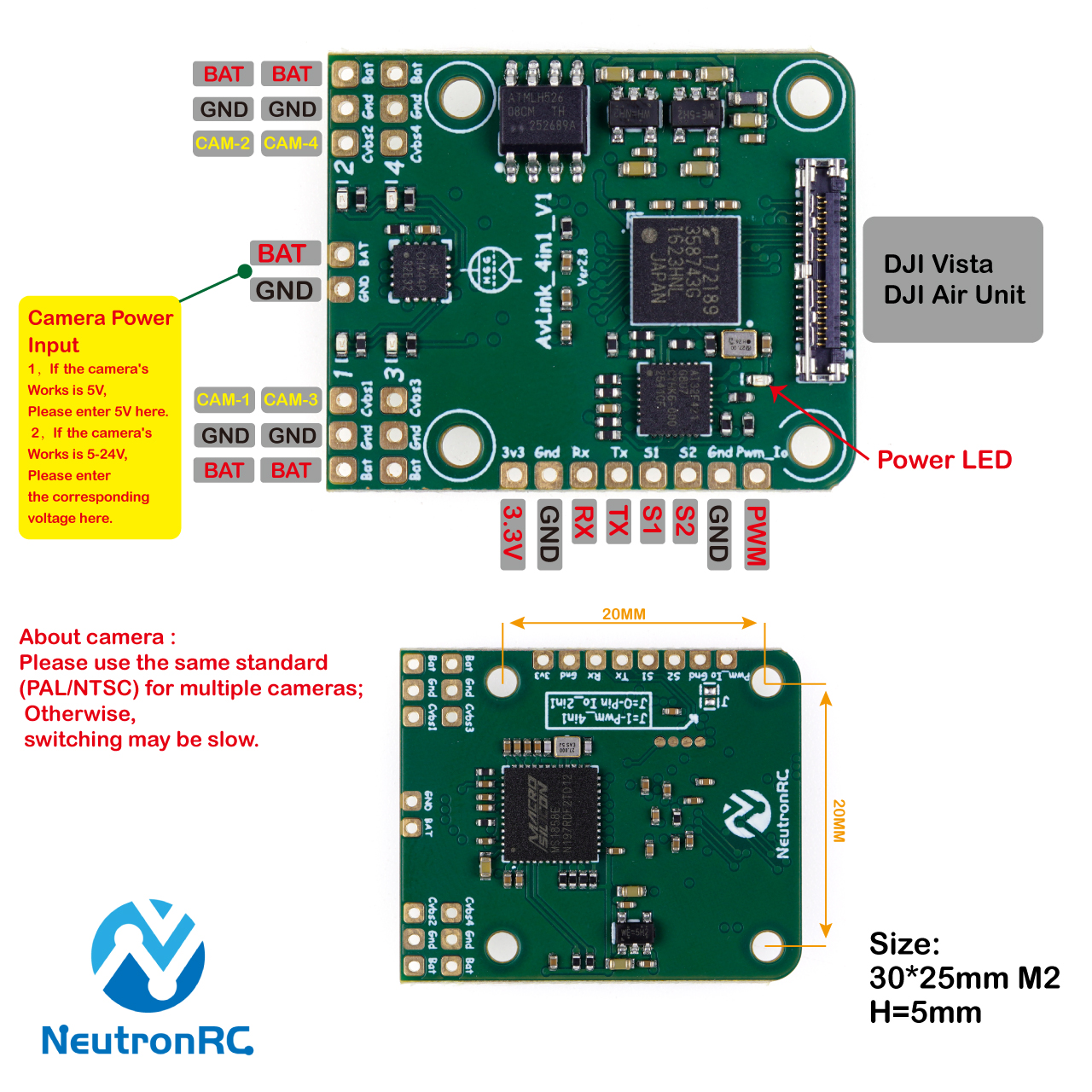

1. Changed the camera connection method to soldering to improve reliability and avoid connector compatibility issues; also reduced installation size and height;

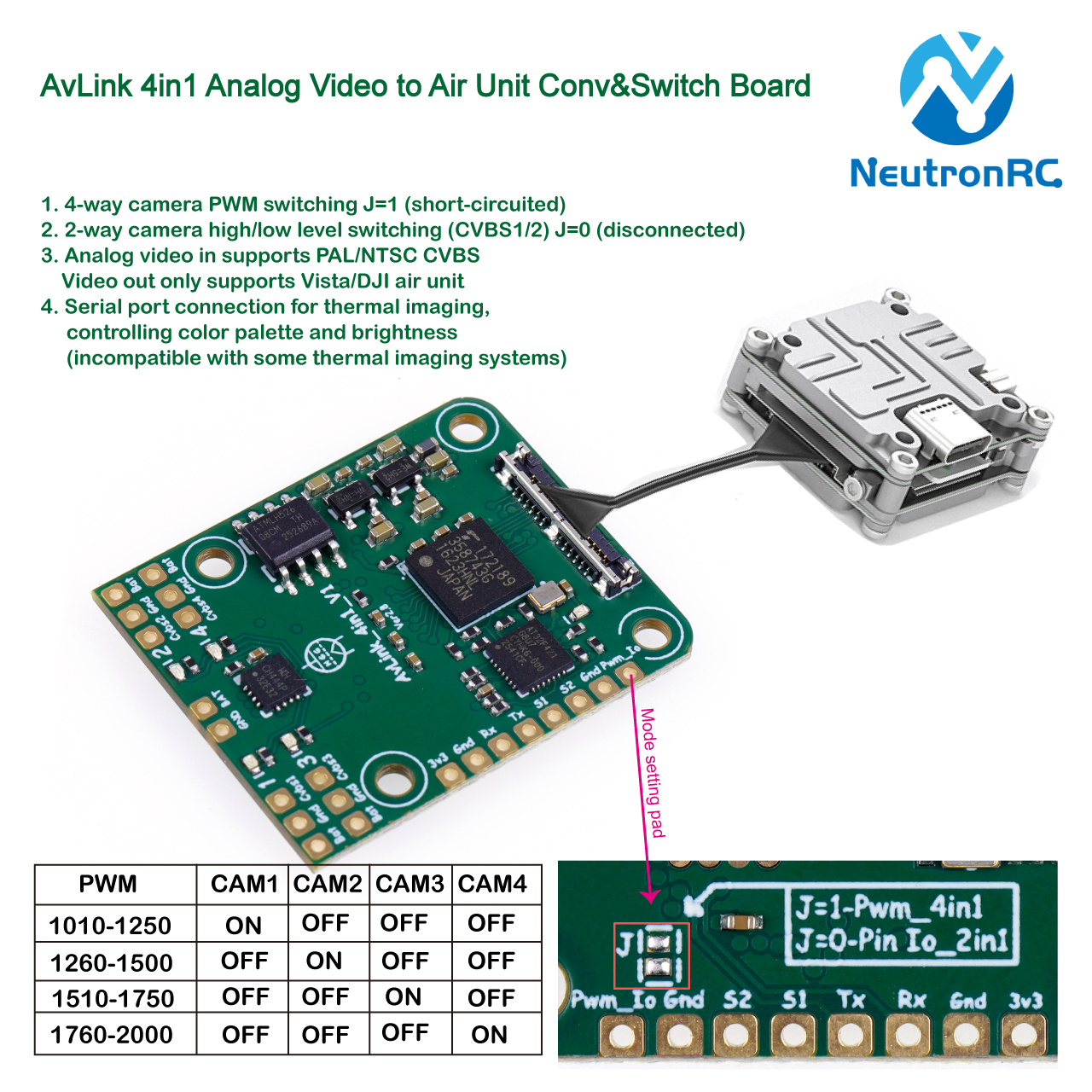

2. Added mode selection, with 2-camera switching and 4-camera switching modes, providing multiple options;

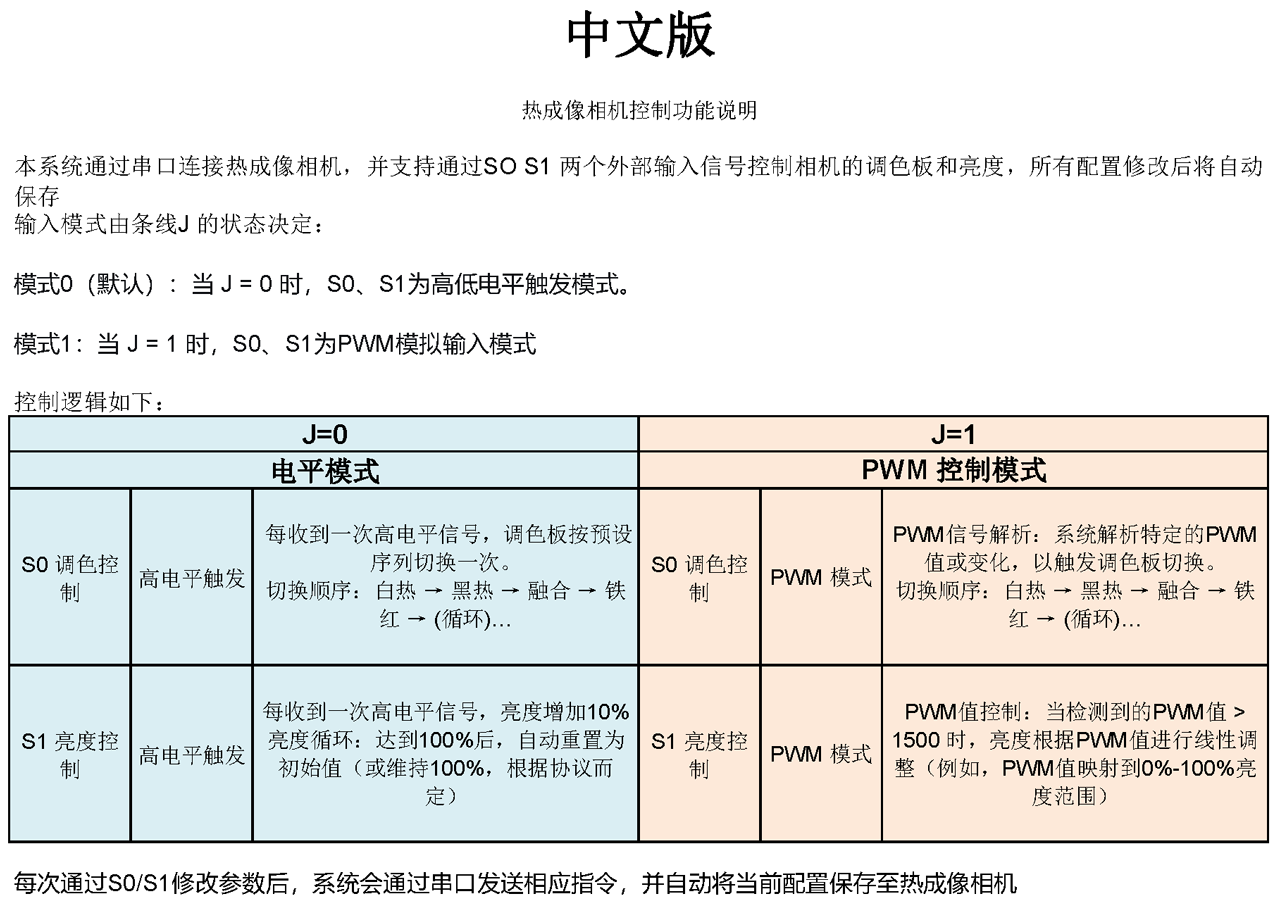

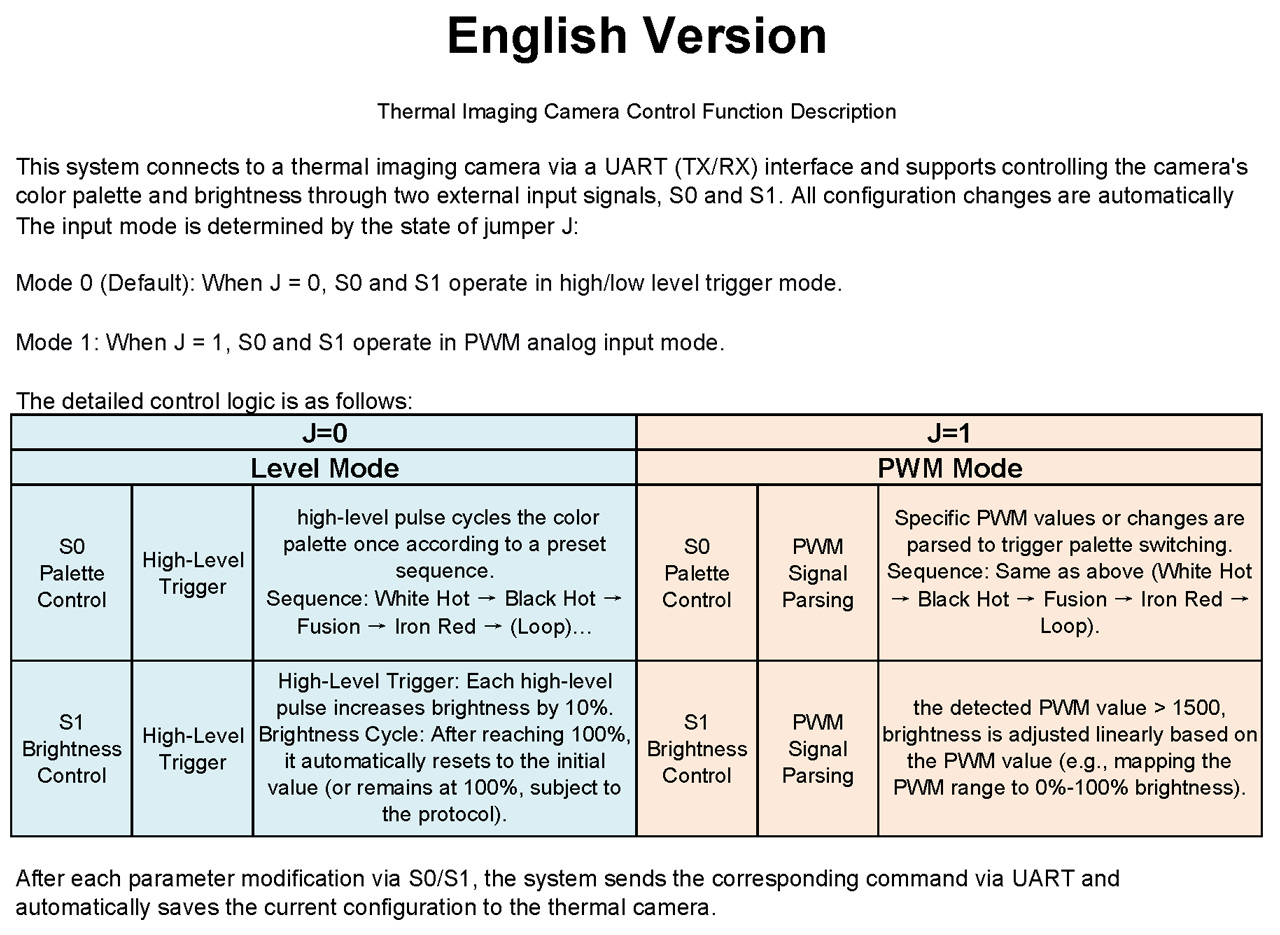

3. Added thermal imaging control function.

The following is retained information from the old version.
