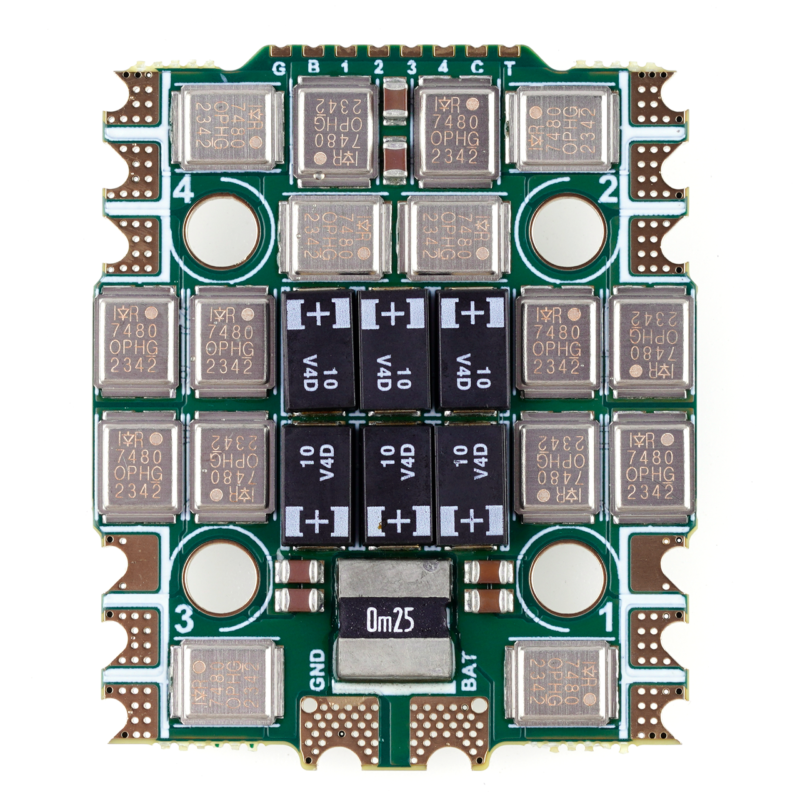

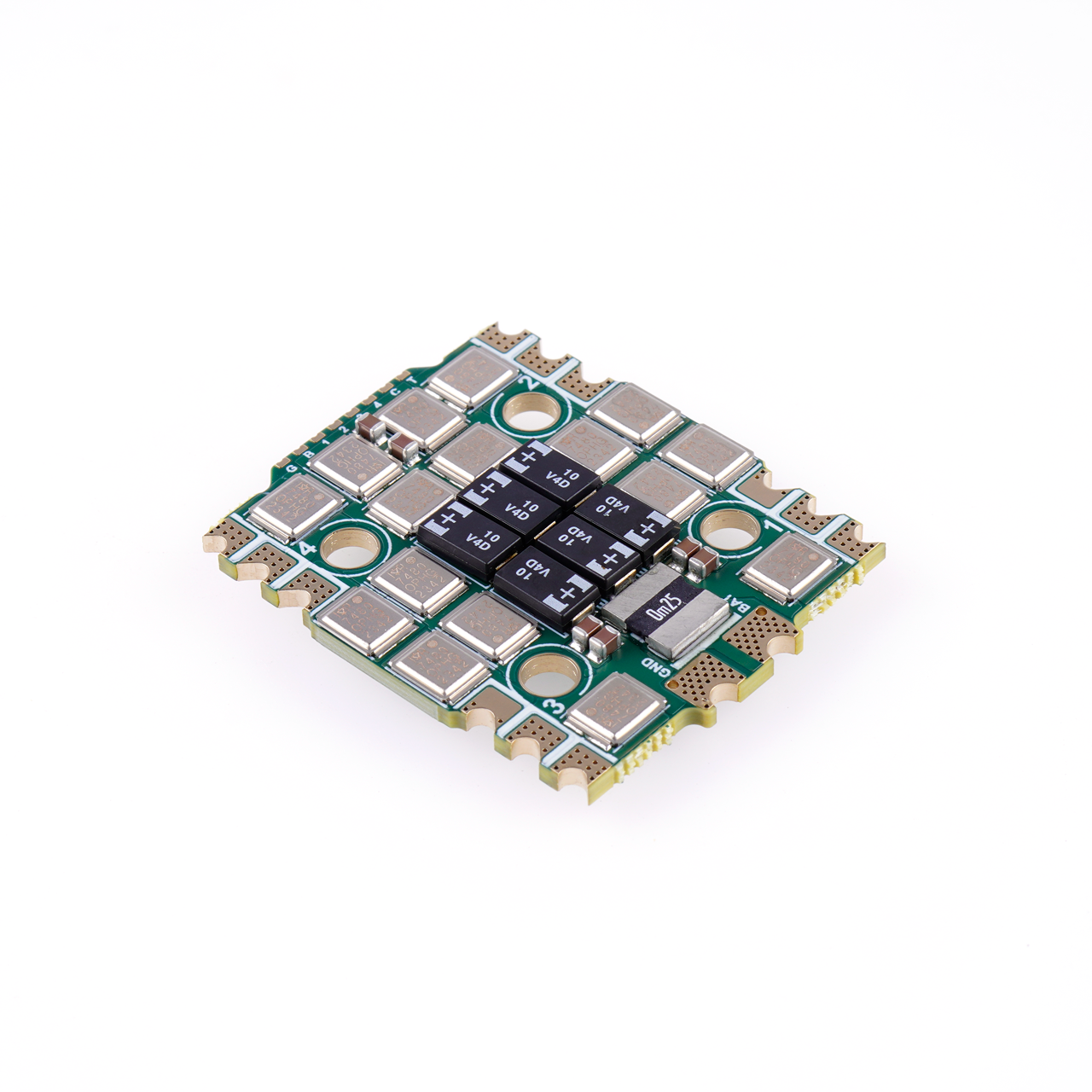

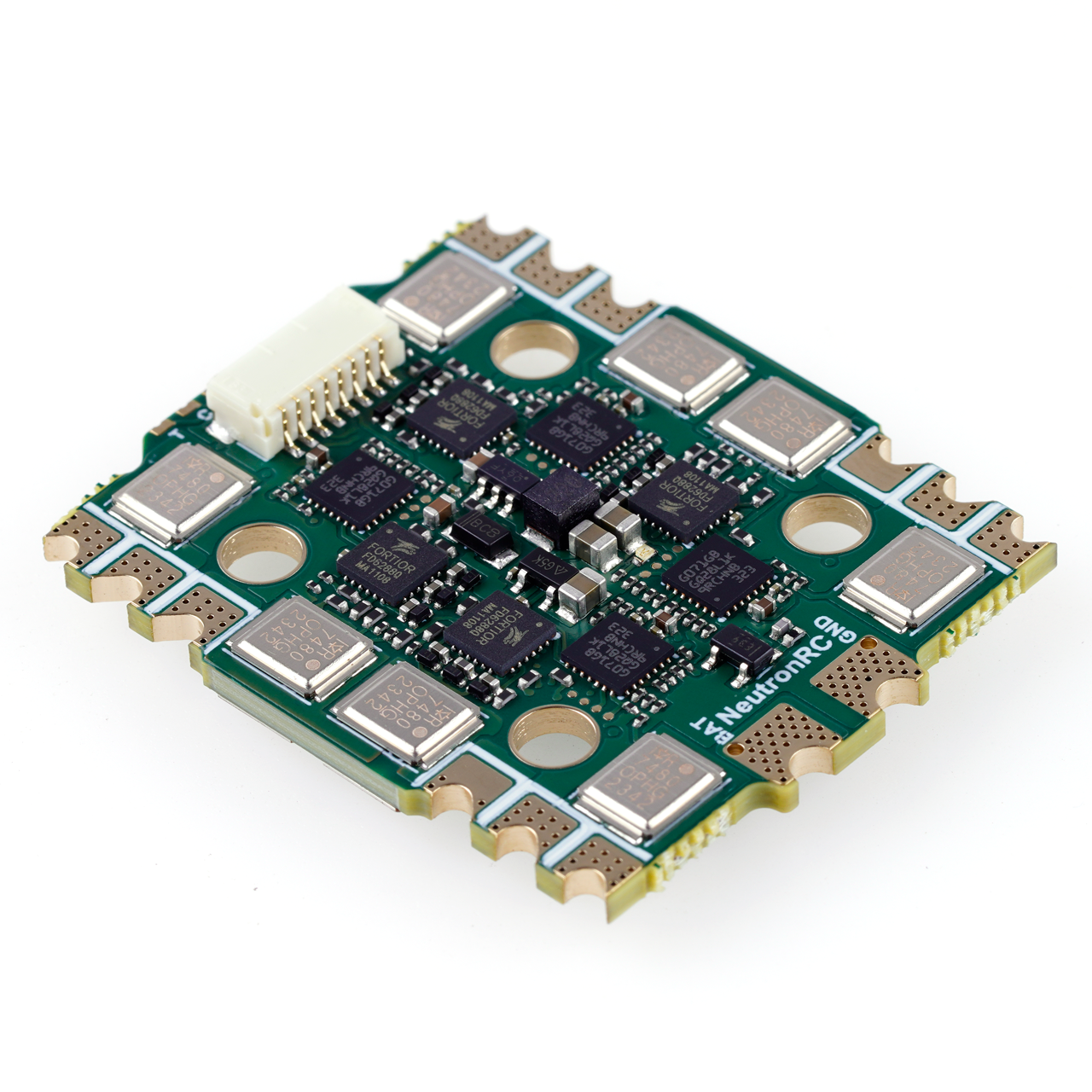

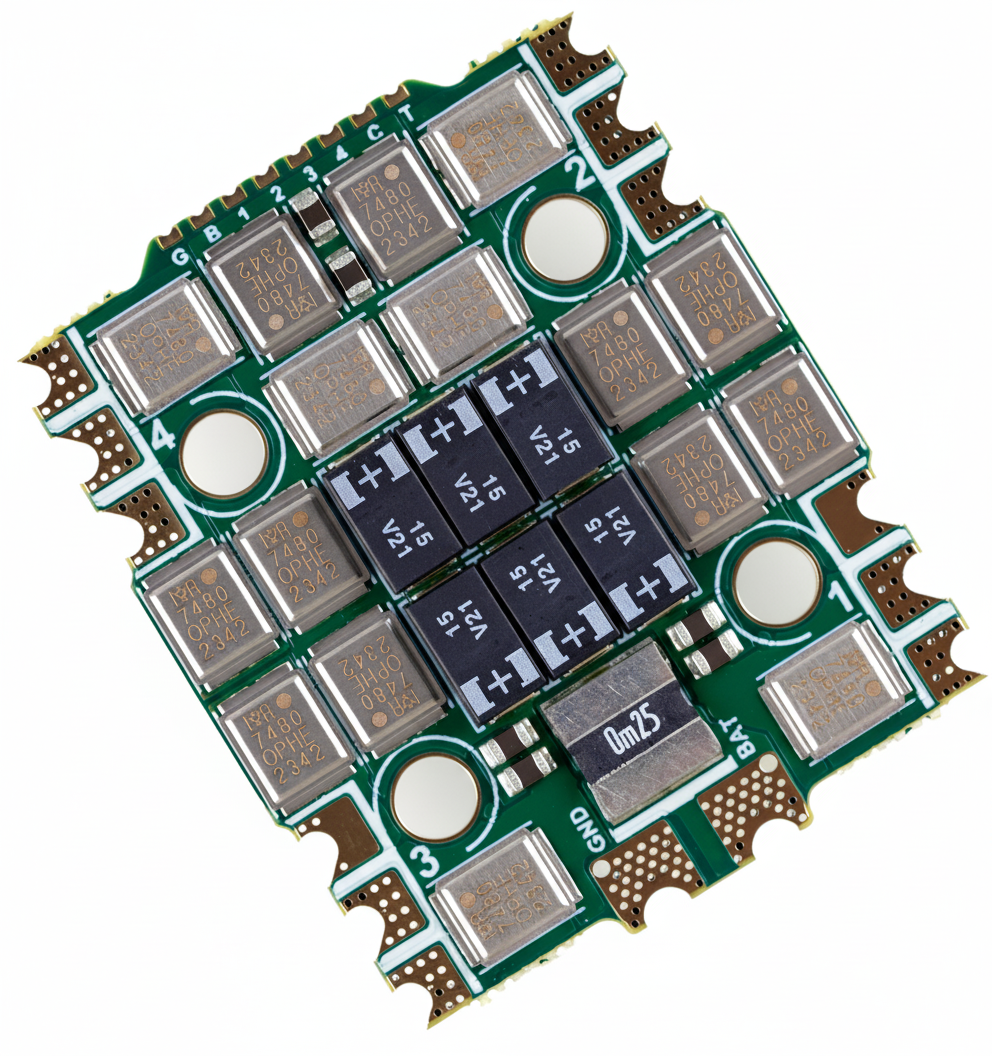

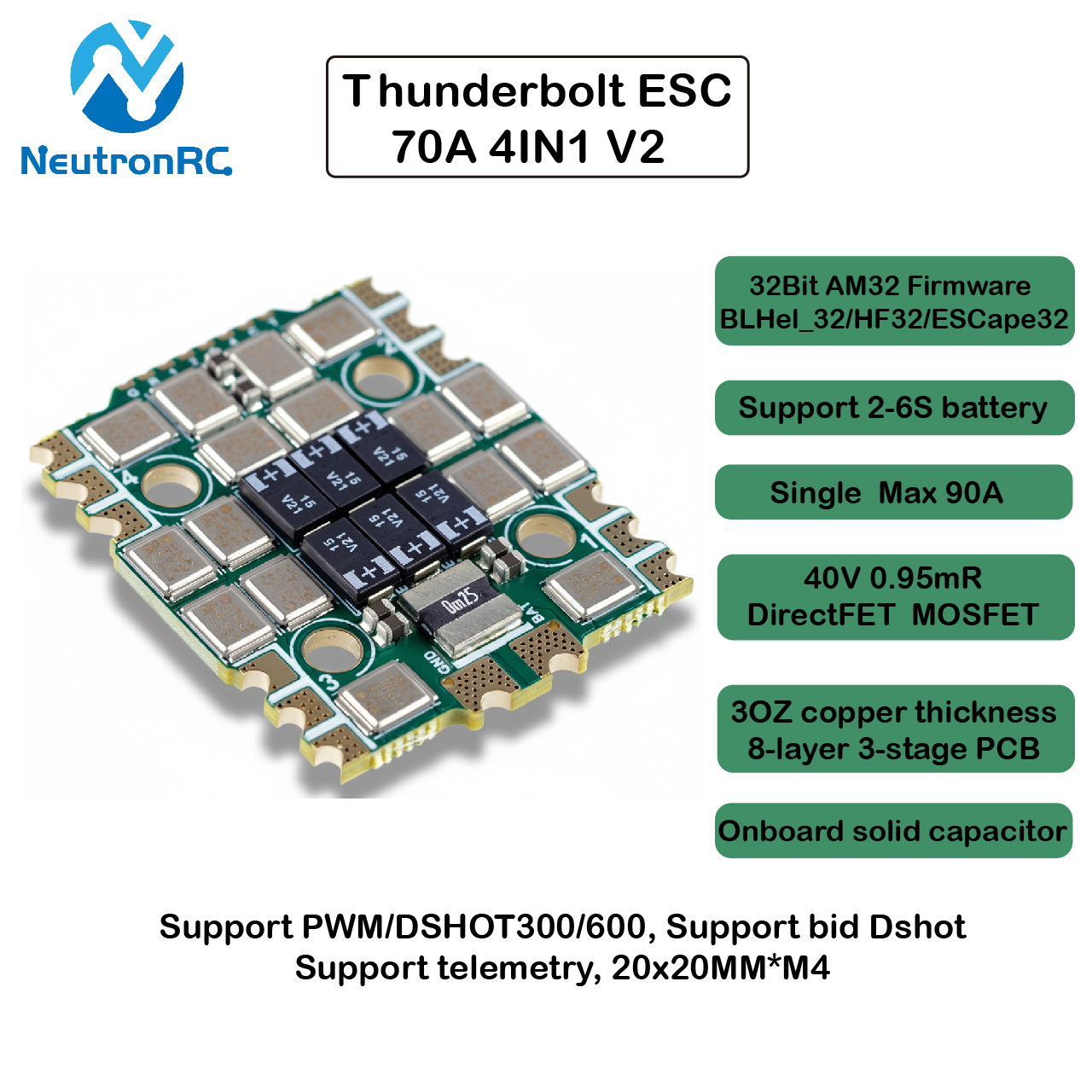

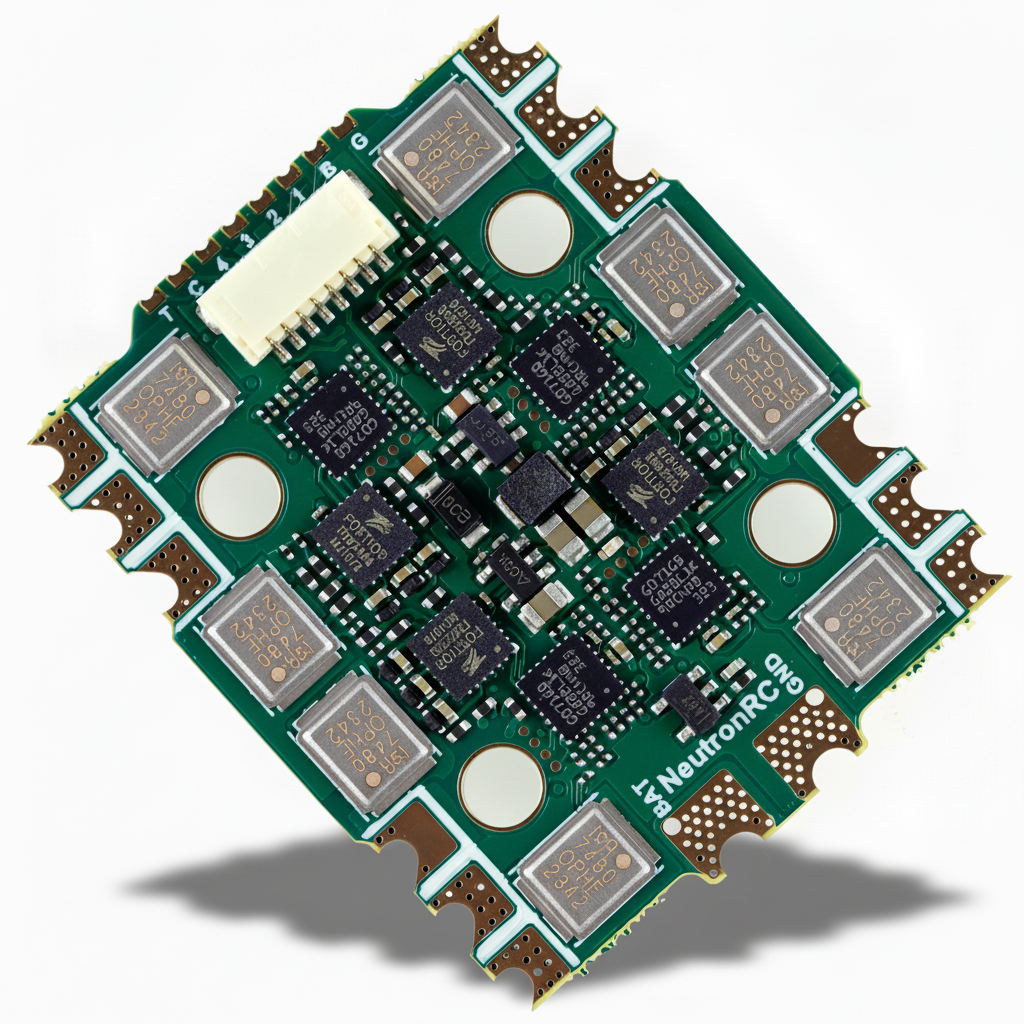

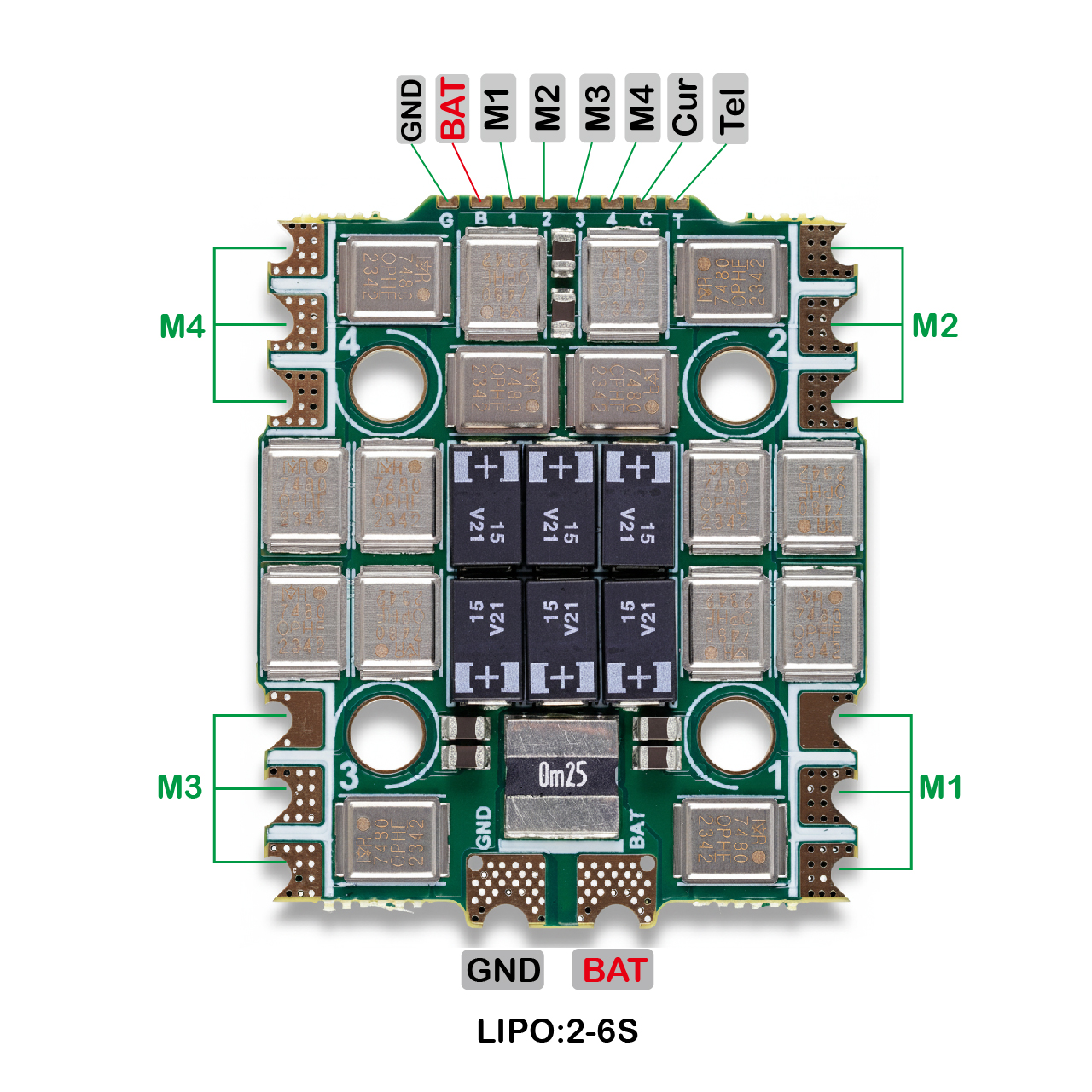

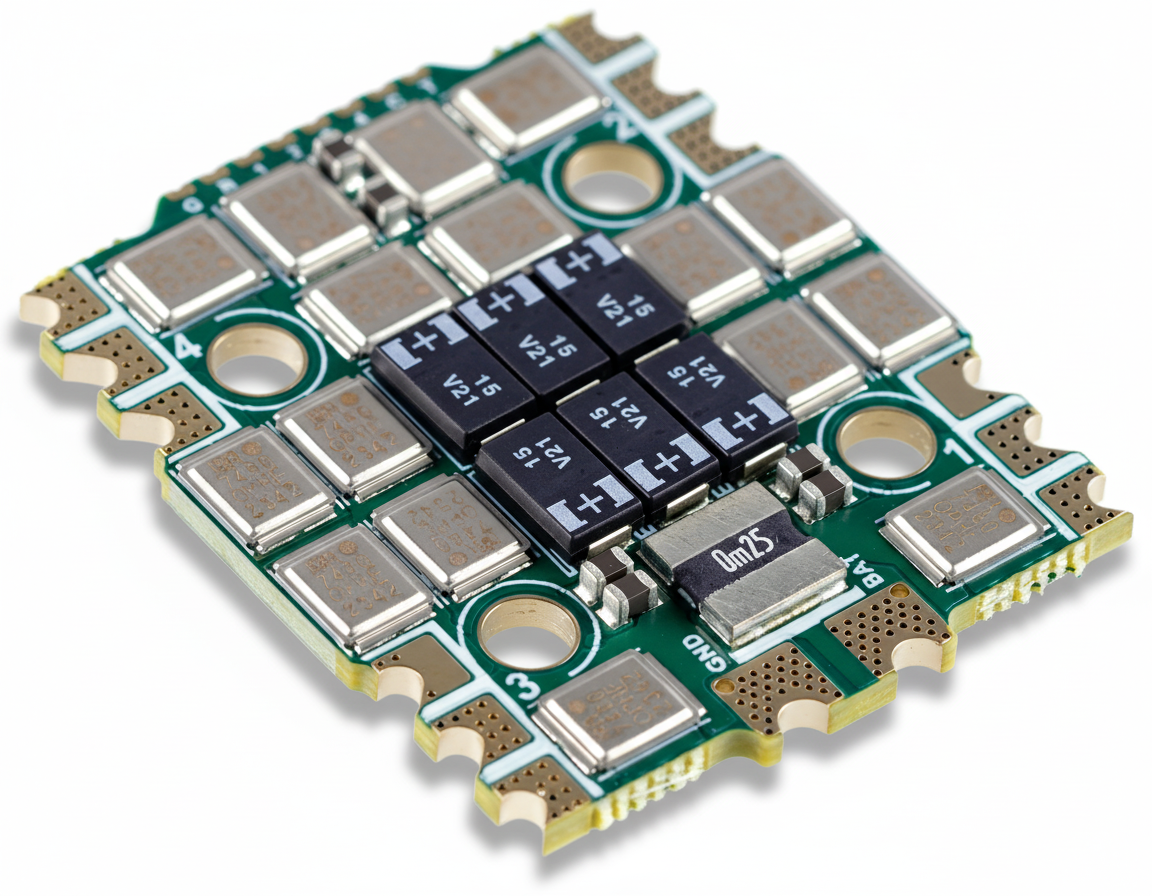

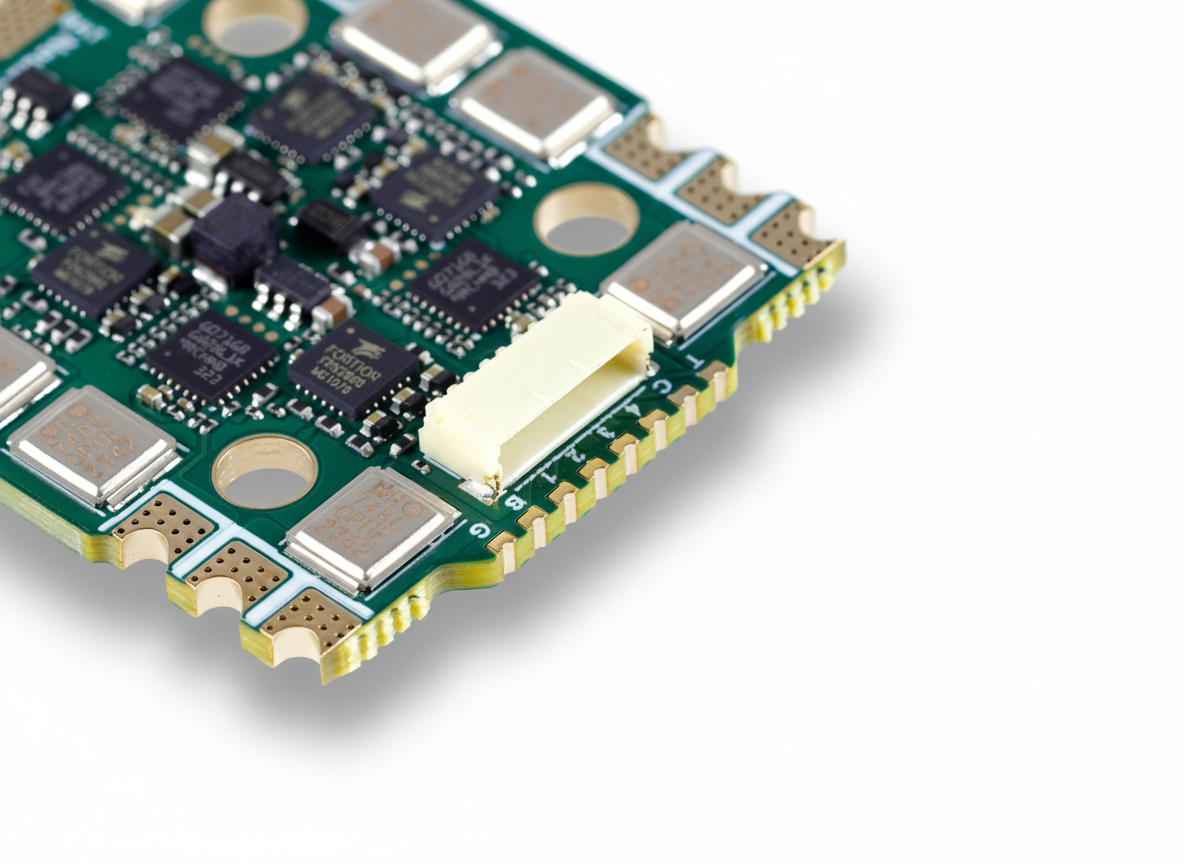

Name: NeutronRC Thunderbolt V2 4-in-1 70A ESC 2-6S LIPO Racing ESC 20*20 M4 Default BLHeli_32 firmware
SKU: 250510
Availability: InStock

NeutronRC Thunderbolt V2 4-in-1 70A ESC 2-6S LIPO Racing ESC 20*20 M4 Default BLHeli_32 firmware

$69.99

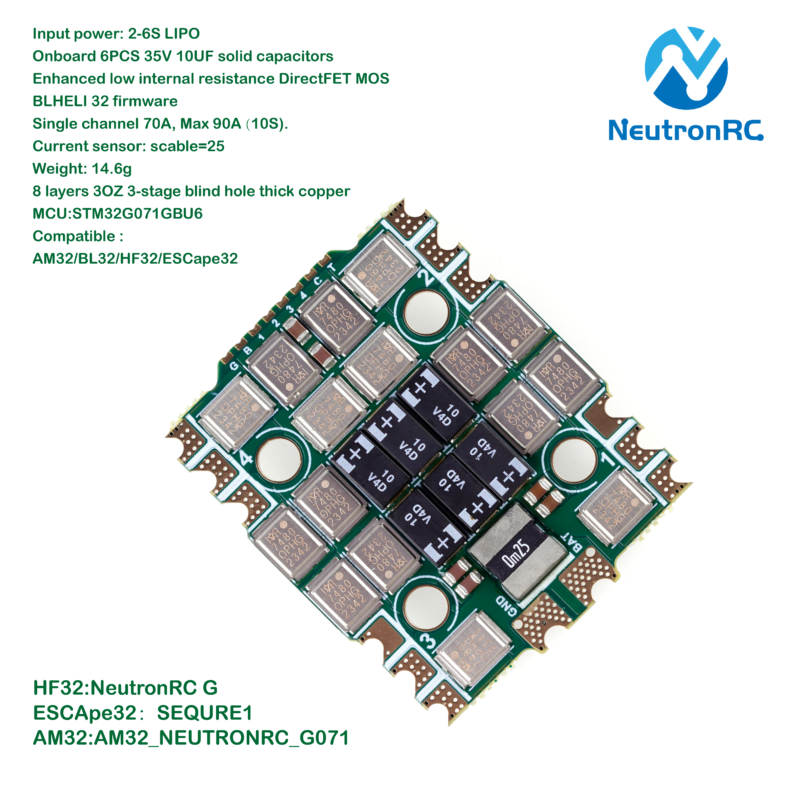

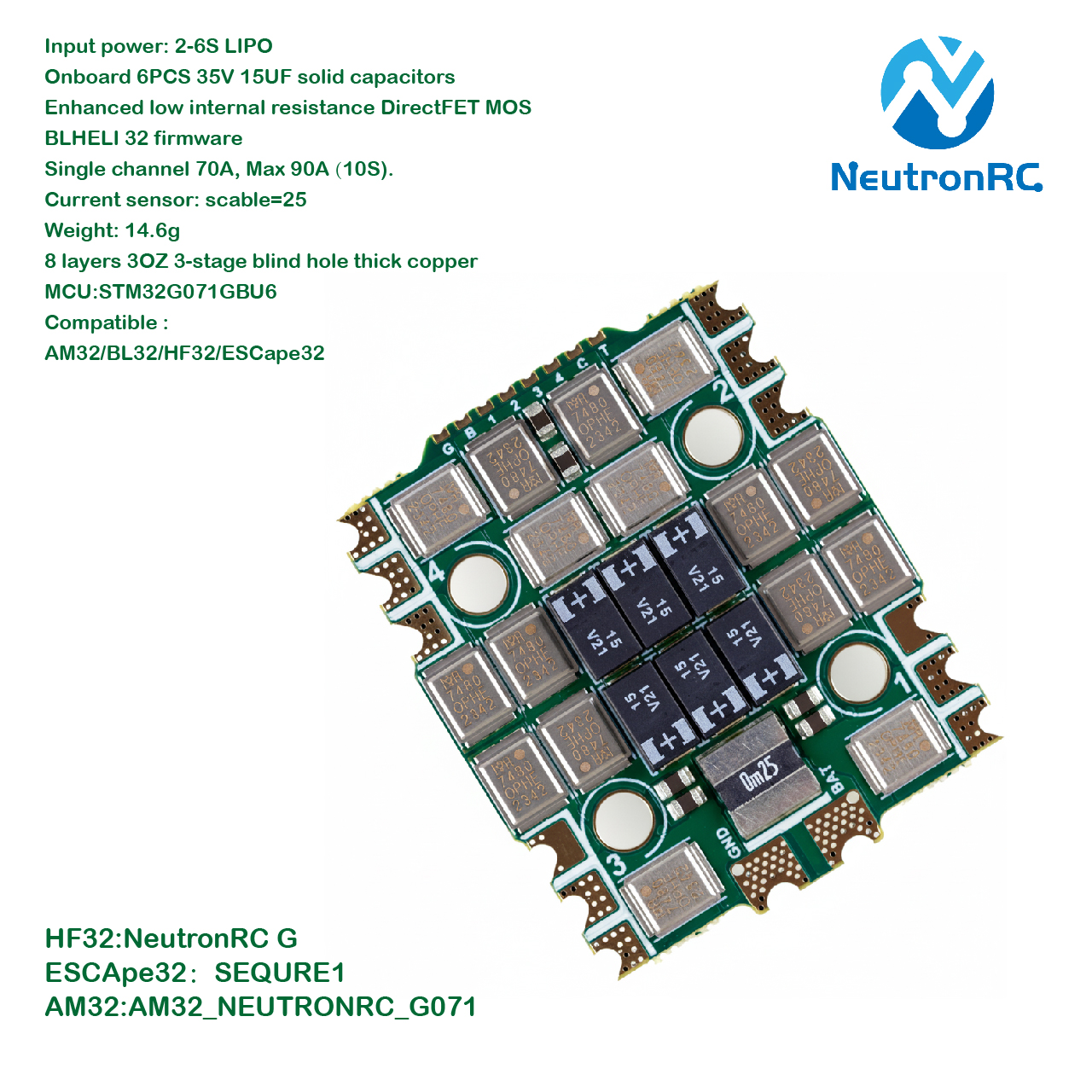

Operating voltage: 2-6S LIPO
Integrated: 6pcs 35V 15uf solid-state capacitors
Automotive-grade DirectFET MOSFET

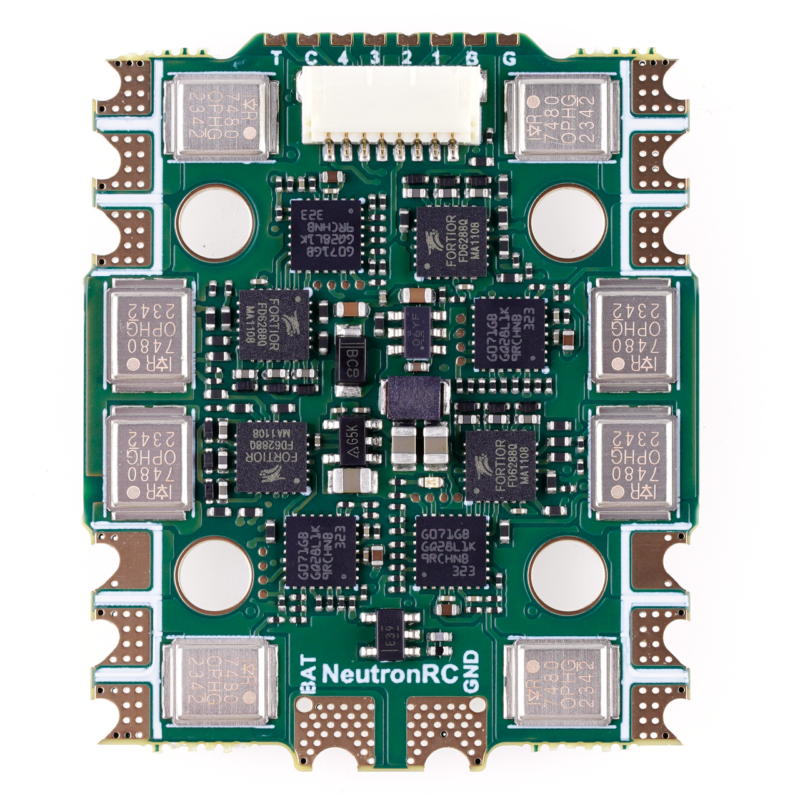

STM32G071 MCU
20x20xM4 holes

SKU: 250510 Category: FPV ESC

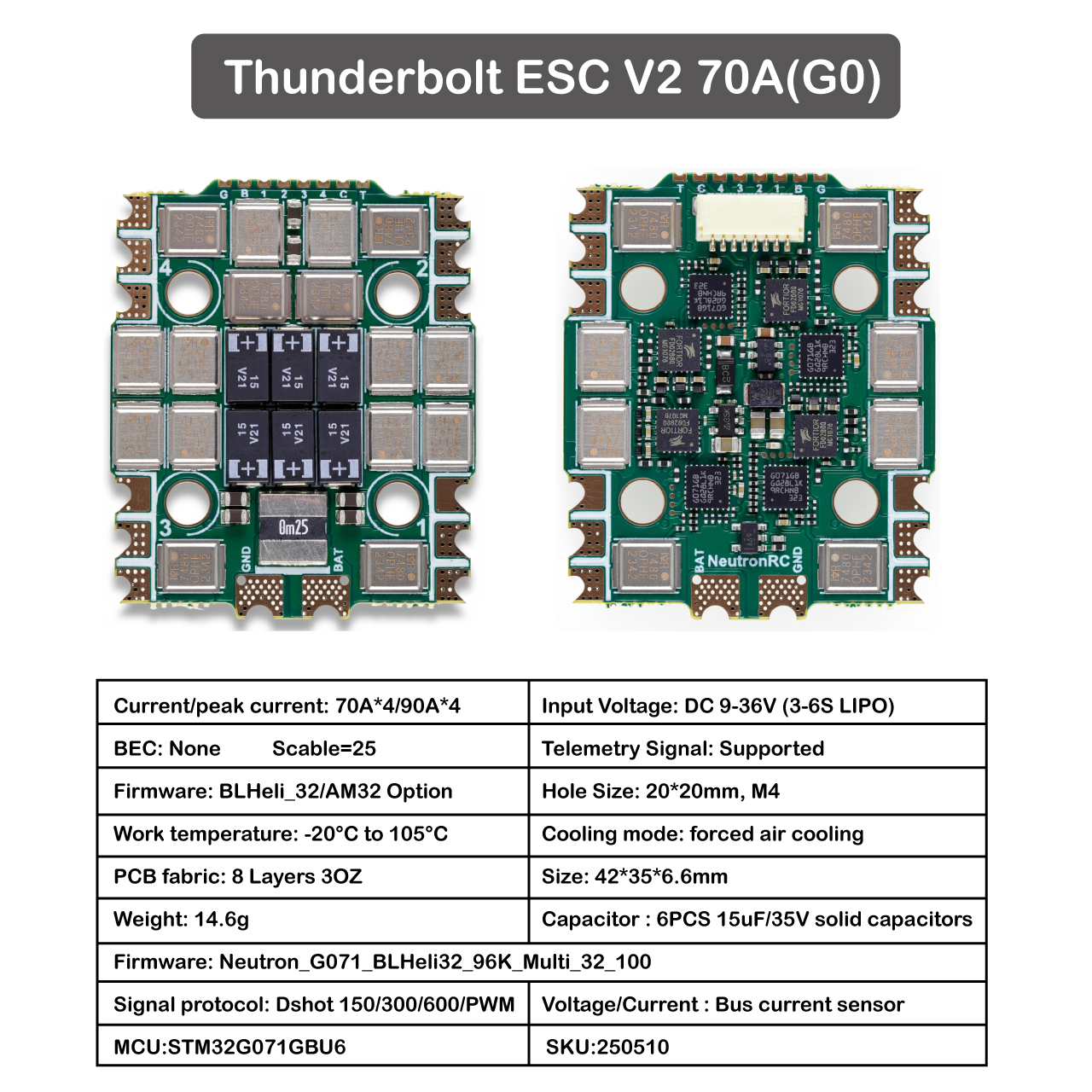

Description

ESC firmware: BLHeli_32

PWM frequency: 24-96K

ESC protocol: PWM/DSHOT300/600

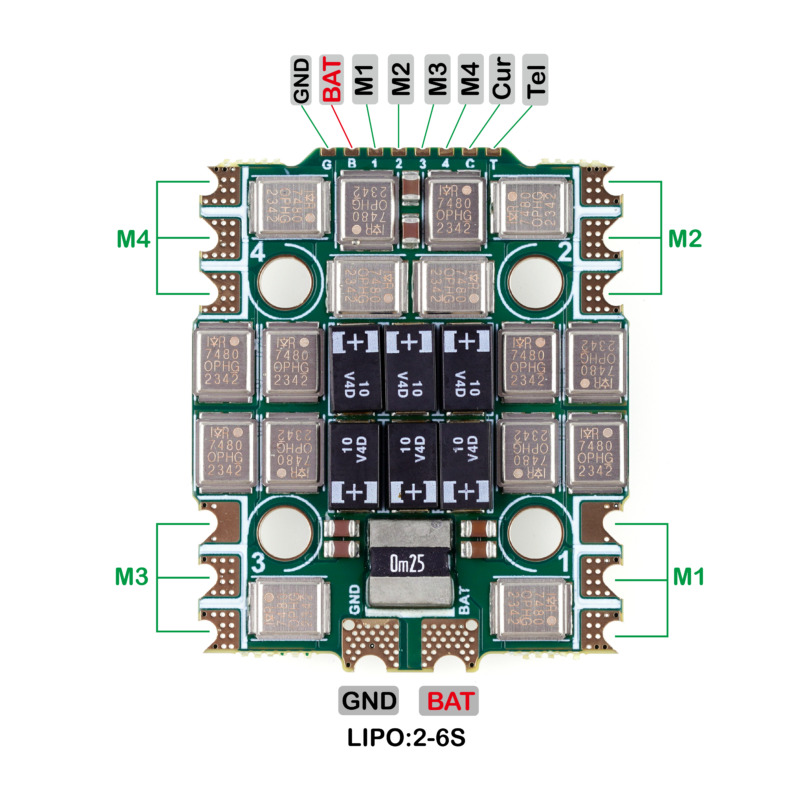

Power input: 2-6S (6.8-25V)

Working current: 70A peak current 90A (10S)

MOSFET parameters: 40V 1.4mR ultra-low DirectFET MOST

Current sensor Scable: 25

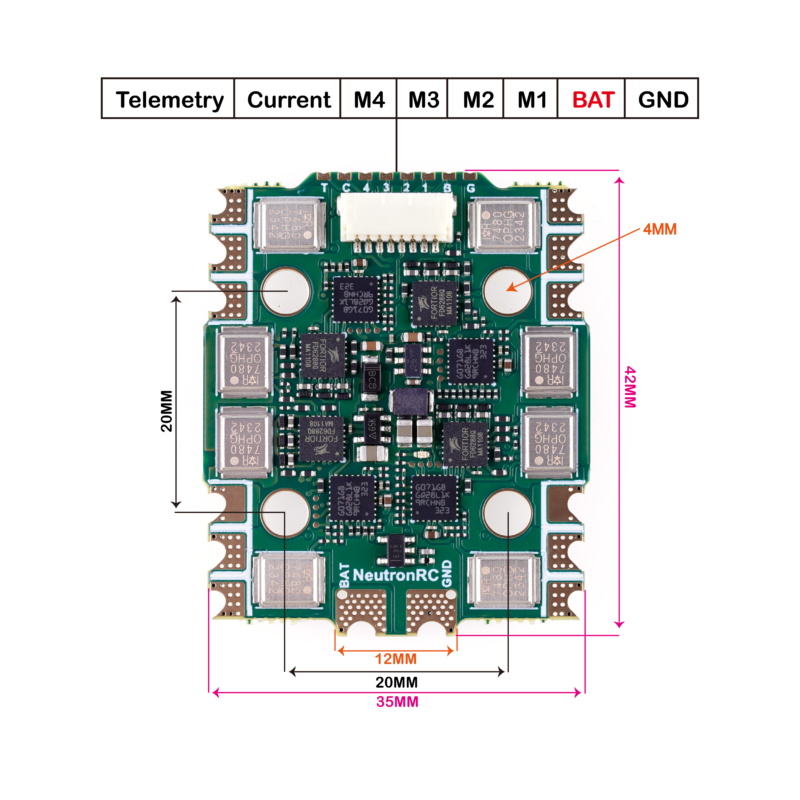

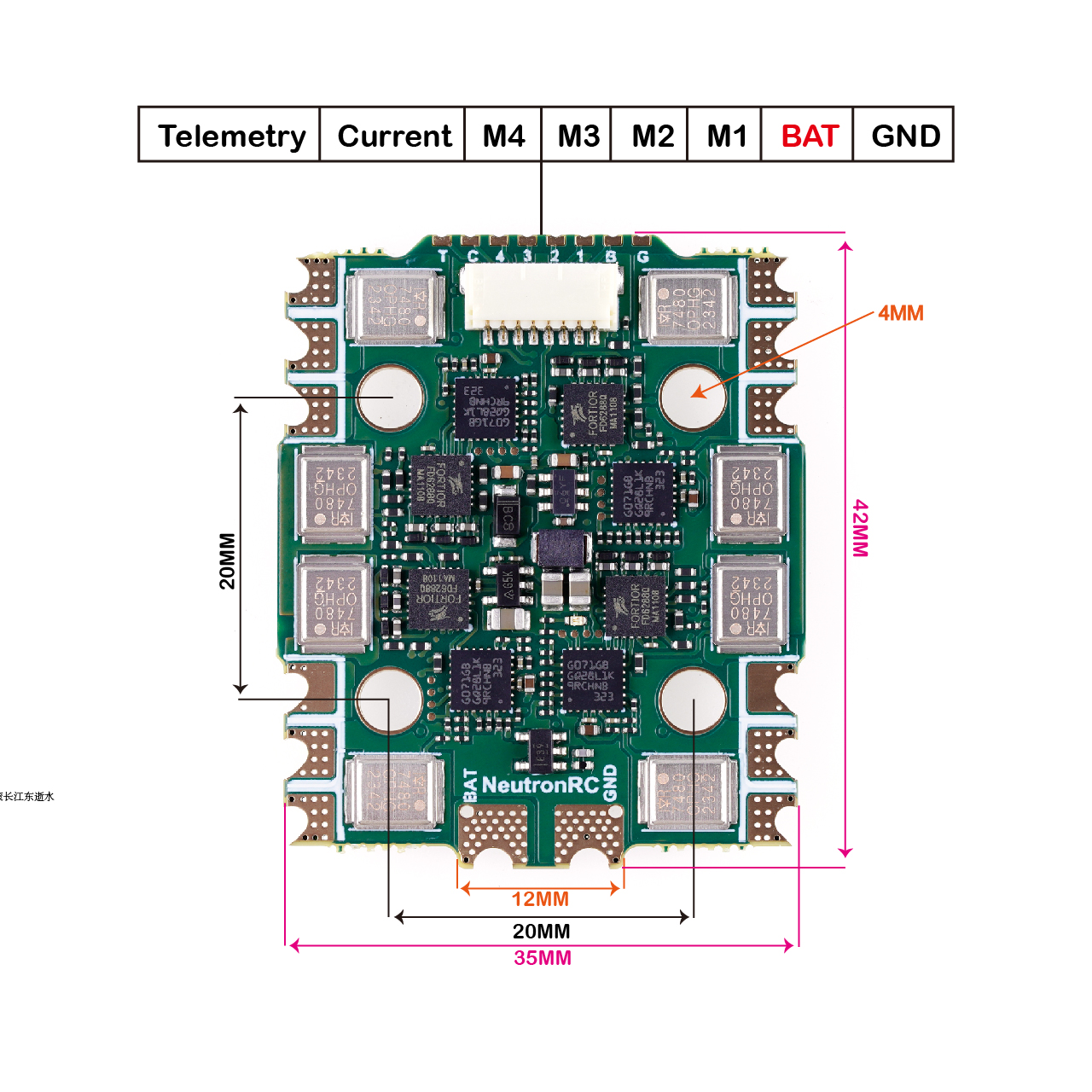

**Mounting hole: 20mm20mmM4**

Weight: 14.6g

Recommended use: 5-10 inch FPV

AM32 Web：https://am32.ca/

HF32 Web：https://hf32.neutron-rc.com/

ESCApe32 web:https://github.com/neoxic/ESCape32

Additional information

Weight	0.2 kg
Dimensions	16 × 16 × 6 cm
