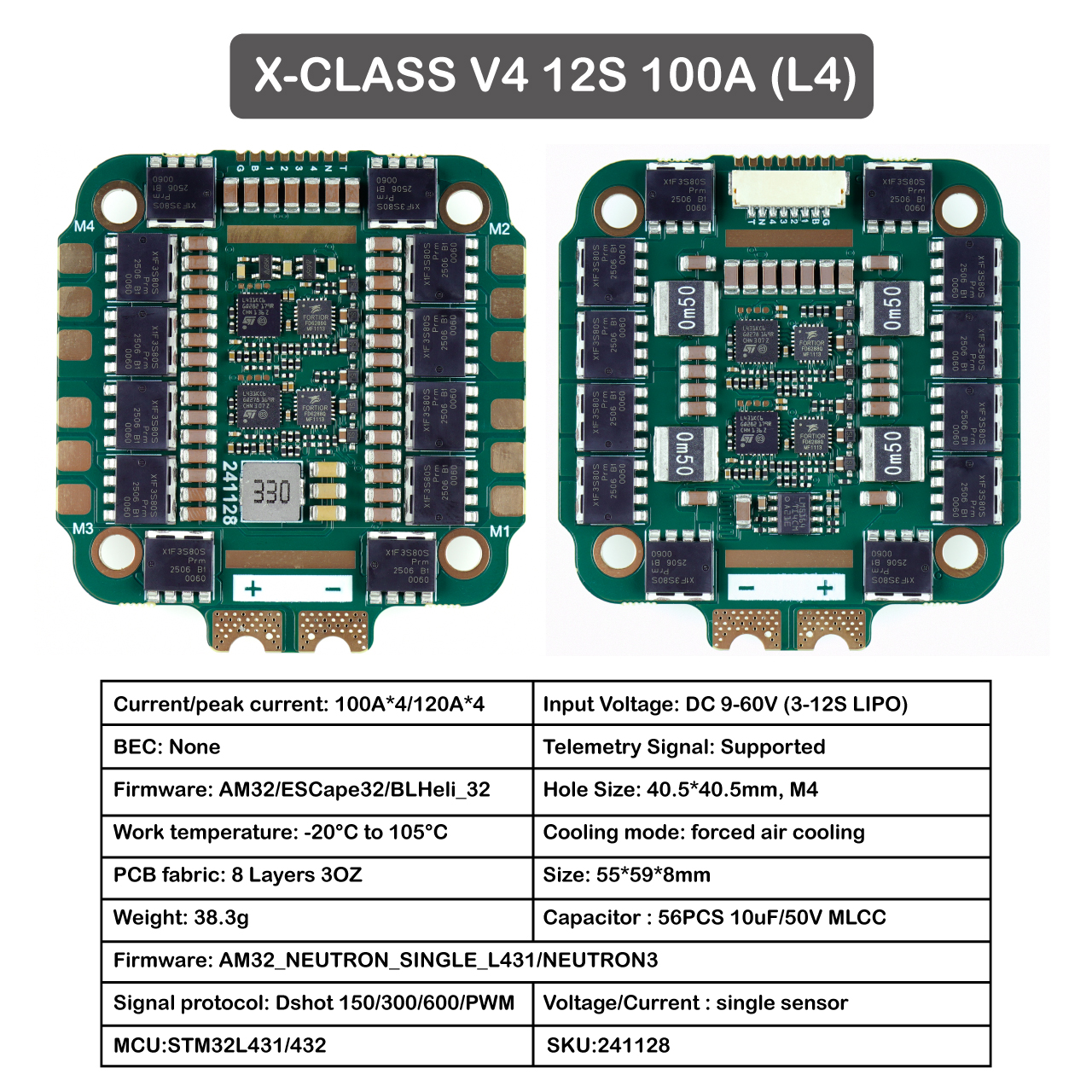

★ Input voltage: 3-12S Lipo;
★ BEC output: None;
★ Continuous working current of each 4-in-1 ESC: 100A (maximum current 120A, 5 seconds);
★ Size: 55*57*8 MM; Installation hole distance, 40.5MM;
★ Weight: 40 grams (excluding wiring);
★ Firmware: AM32 (default)/ESCape32
★ Support PWM, Dshot150/300/600, Oneshot 125/42, Multishot;
★ Processor; STM32L431/432 CorteX-M4 core 80M;
★ MOS; NXP automotive grade MOS;
★ Each ESC integrates a three-in-one H-bridge driver;
★ Four independent current and voltage detection (flight control settings need to turn on
TELEMETRY & power & battery to select ESC sensor);
★ Onboard 56PCS TDK high-voltage and high-capacitance MLCC imported capacitors;
★ Onboard high-voltage BEC, maximum input voltage 100V (only BEC tolerance, the overall operating voltage
of the electrical adjustment varies according to the MOS);
★ 8P gold-plated self-locking socket, easily connected to the FC cable;
★ AM32:
https://am32.ca/ Target: (NEUTRON_SINGLE_L431)
★ ESCape32:
https://github.com/neoxic/ESCape32 / Target:(STM32L431 NEUTRON3)
pakc list:
12S 100A 4IN1 motherboard 1PCS
M3*8 damping ball 4PCS
XT90 connector 1PCS
1.0-8P cable *1 PCS
#10 red black L=100MM cable *2PCS
63V 1000UF capacitor *2PCS
