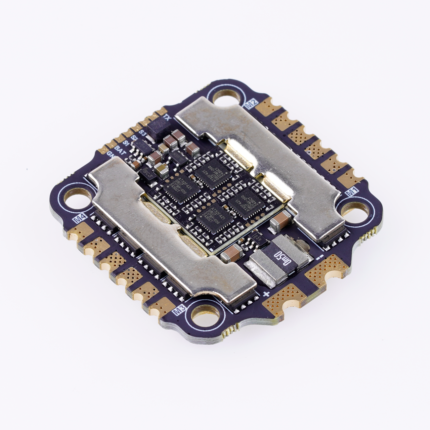

★ Power INPUT：3-8S 80A/ 3-12S 70A Lipo/ On Stop =OFF);
★ BEC： NO；
★ Continuous current per channel (FPV)：80A(MAX90A,5S)，70A（MAX80A,5S）；
★ SIZE：40*43*7MM,Hole distance：30.5MM;
★ Weight：14.2g（Accessories not included）；
★ Firmware：BLHELI_32(31.83 TEST)/AM32(table）
★ Support PWM,Dshot150/300/600/1200，Oneshot 125/42,Multishot；
★ MCU；STM32L431/432 CorteX-M4 80M；
★ MOS；NXPVehicle regulationsMOS；
★ Each channel has 3-in-1 driver；
★ Independent voltage and current sensors（FC Turn ON ESC_SENSOR/Power&Battery/ESC Sensor）

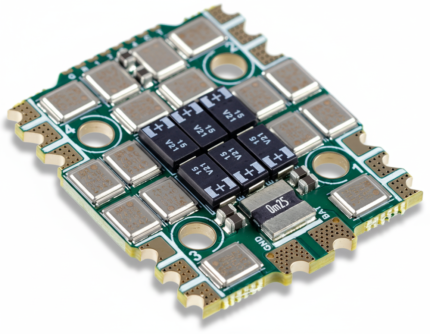

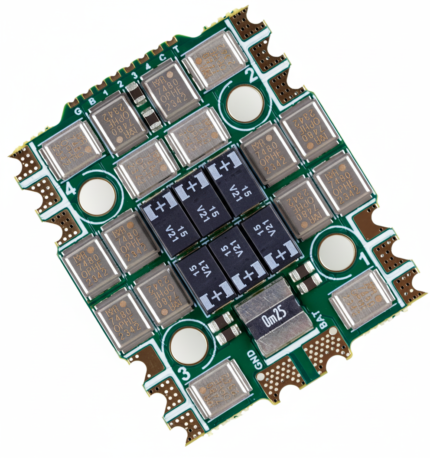

★ Onboard 25PCS TDK 35V 22uF high voltage high capacitance MLCC imported capacitors；
★ Onboard high-voltage BEC, maximum input voltage 100V (only BEC tolerance, the overall
operating voltage of the electrical adjustment varies according to different MOS);

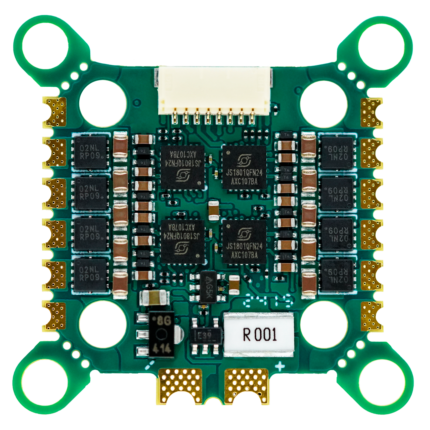

★ 8P gold-plated socket, easy to connect with FC cable；
★ Firmware download ：
BLHel_32:
https://github.com/bitdump/BLHeli/tree/master/BLHeli_32%20ARM
★ BLHeli_32 Test Configner：
https://drive.google.com/file/d/1u5EYdk4qjBS_xbbAC0Nh5FHdQjyQ-tMV/view?usp=sharing
★ AM32:
https://am32.ca/ (Experimental firmware, waiting for AM32 to be officially released)
