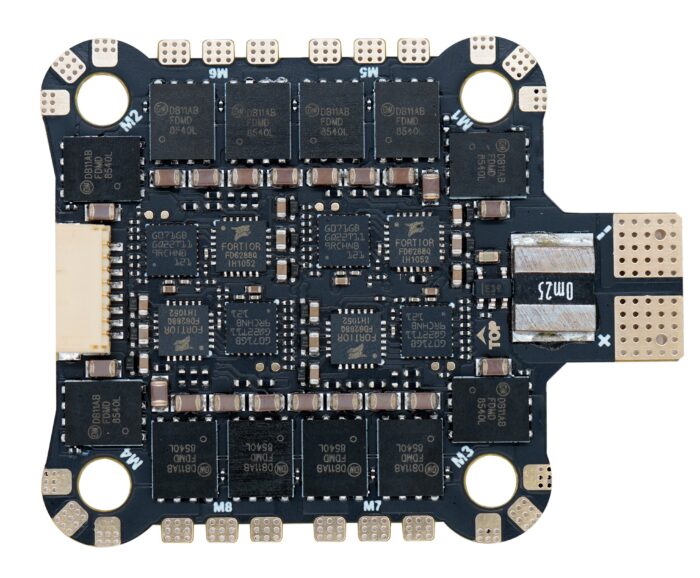

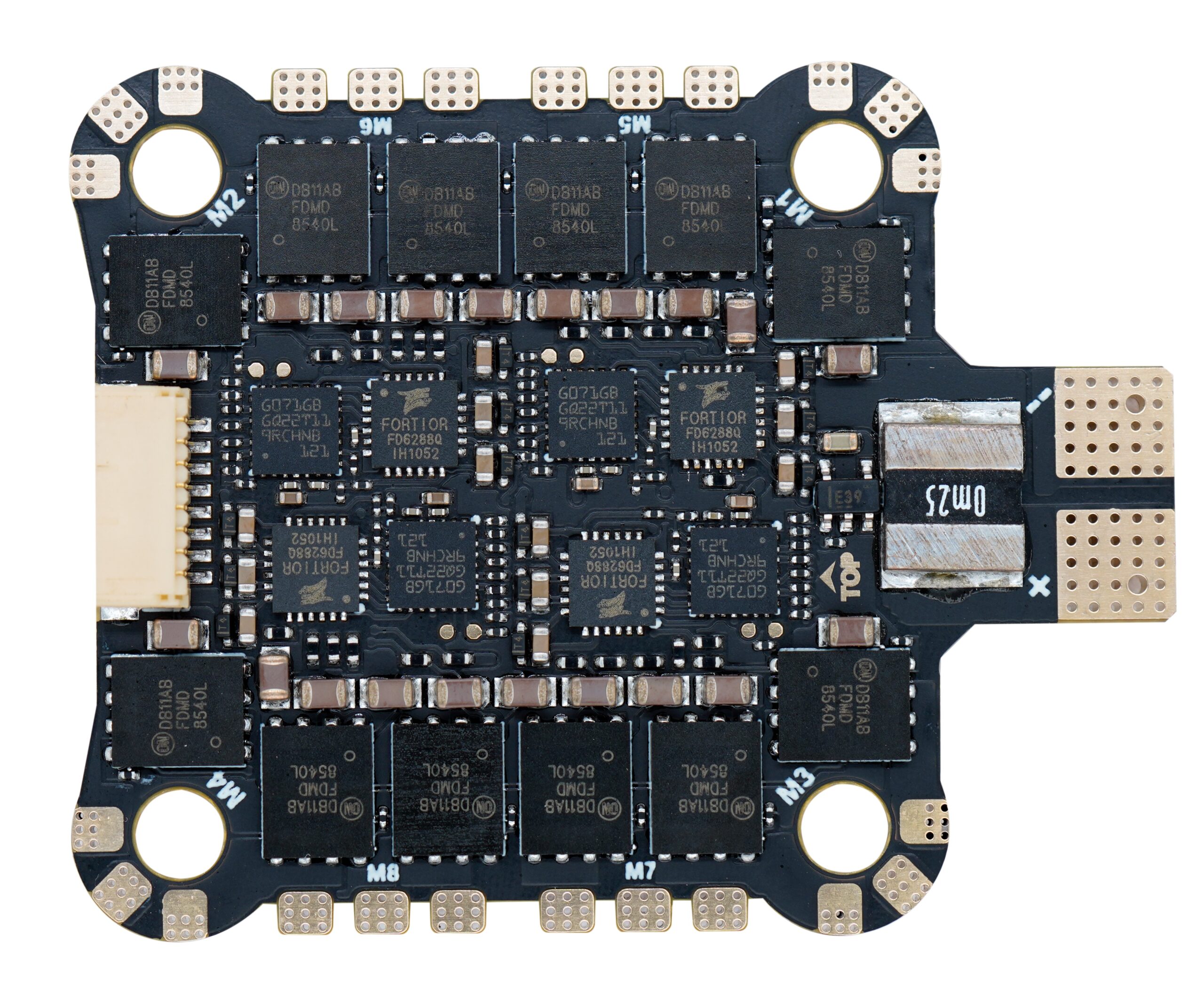

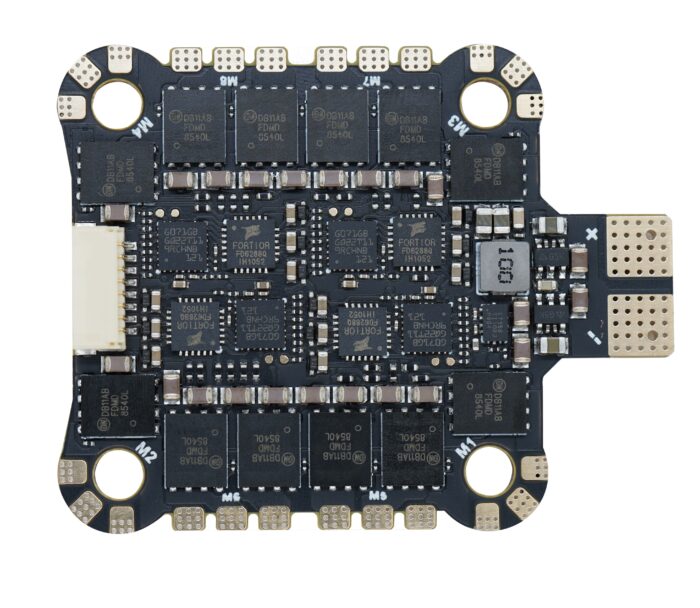

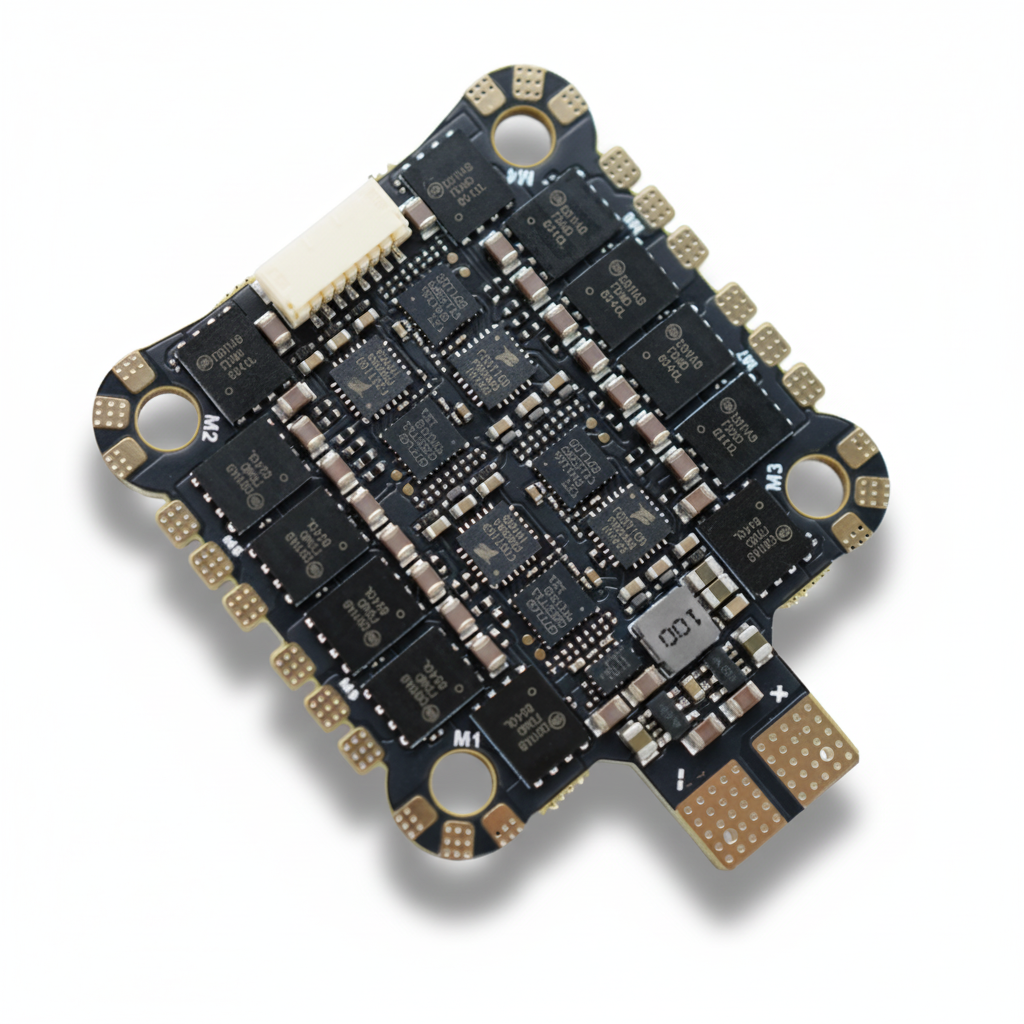

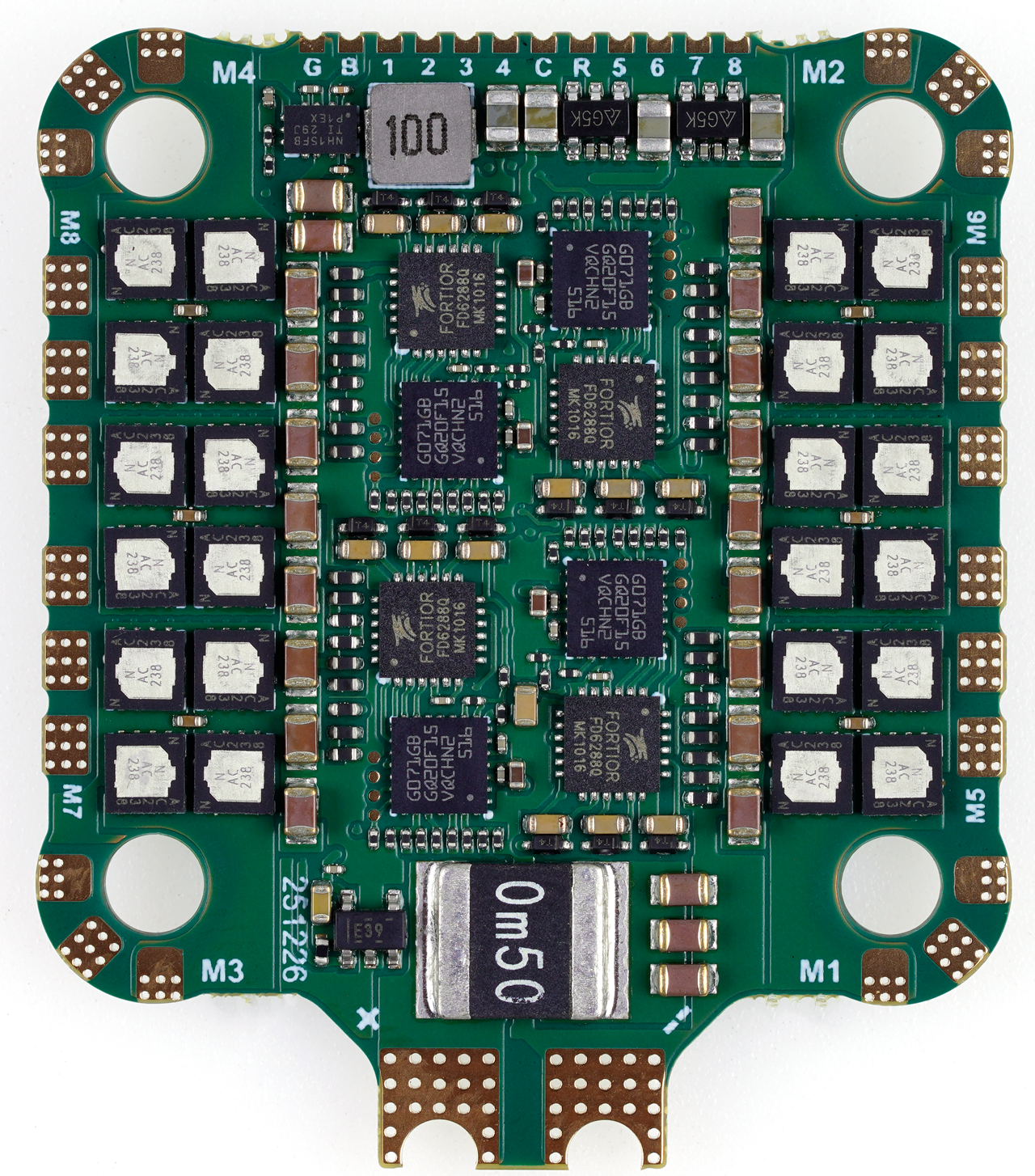

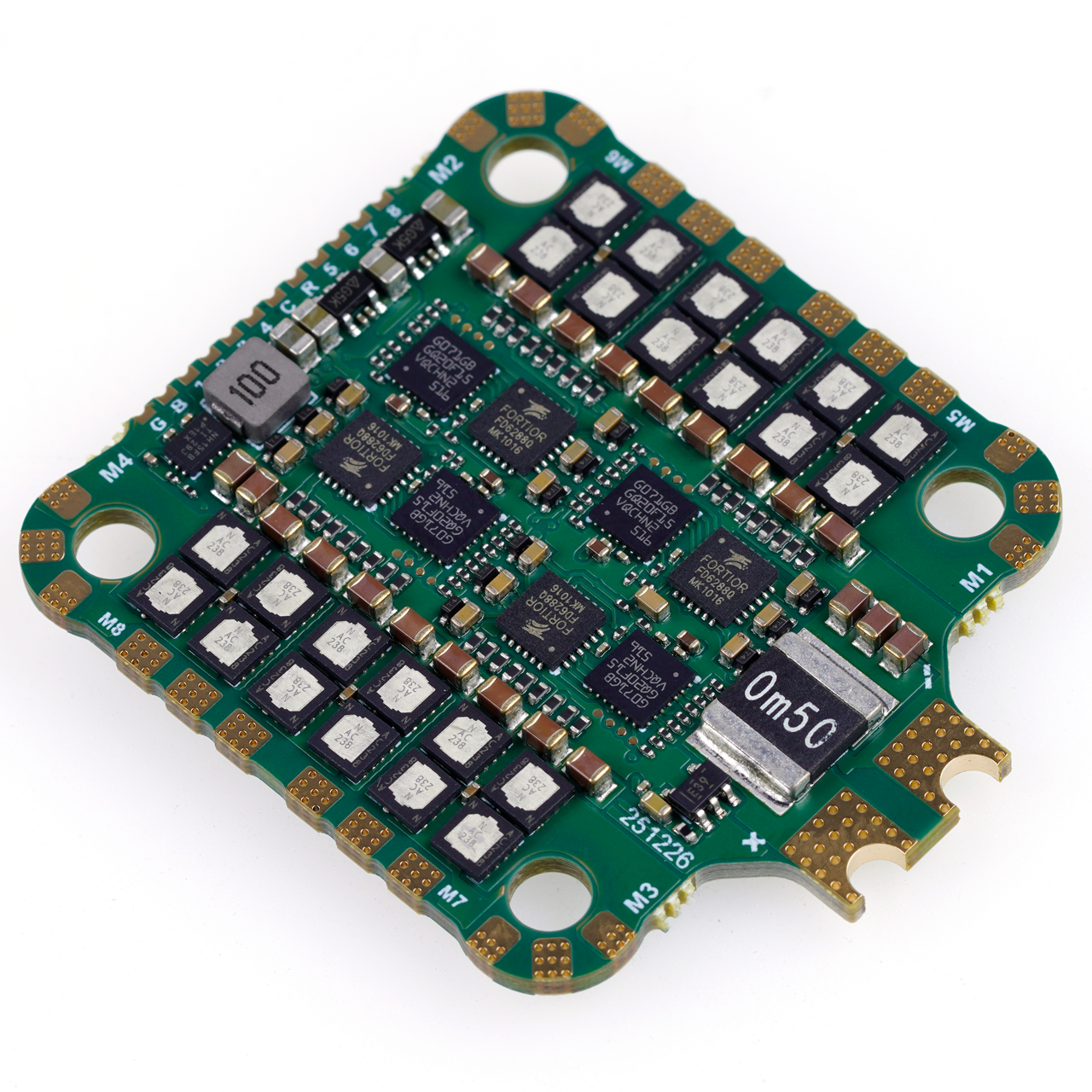

NeutronRC X-CLASS 3-8S 8-IN-1 50A ESC Brushless Motor Controller FPV Drone

Current/peak current: 50A*4/55A*4
BEC: None

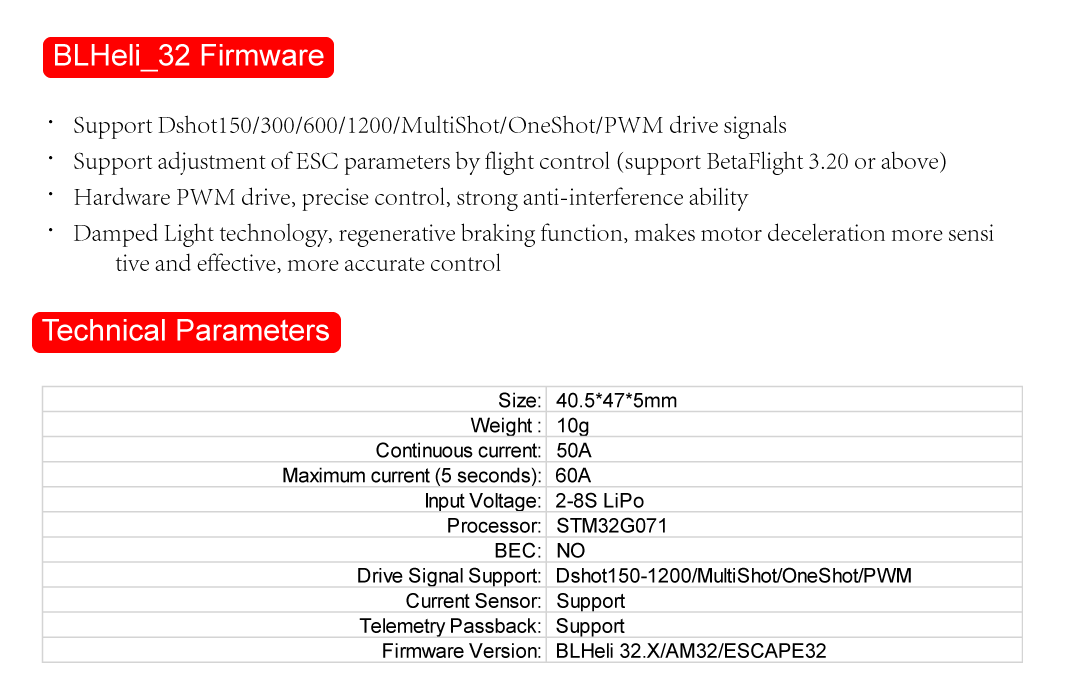

Firmware: AM32/BLHeli_32 Option
Work temperature: -20°C to 105°C
PCB fabric: 8 Layers 2OZ
Weight: 10g
Target: AM32_NEUTRONRC_G071
Signal protocol: Dshot 150/300/600/PWM

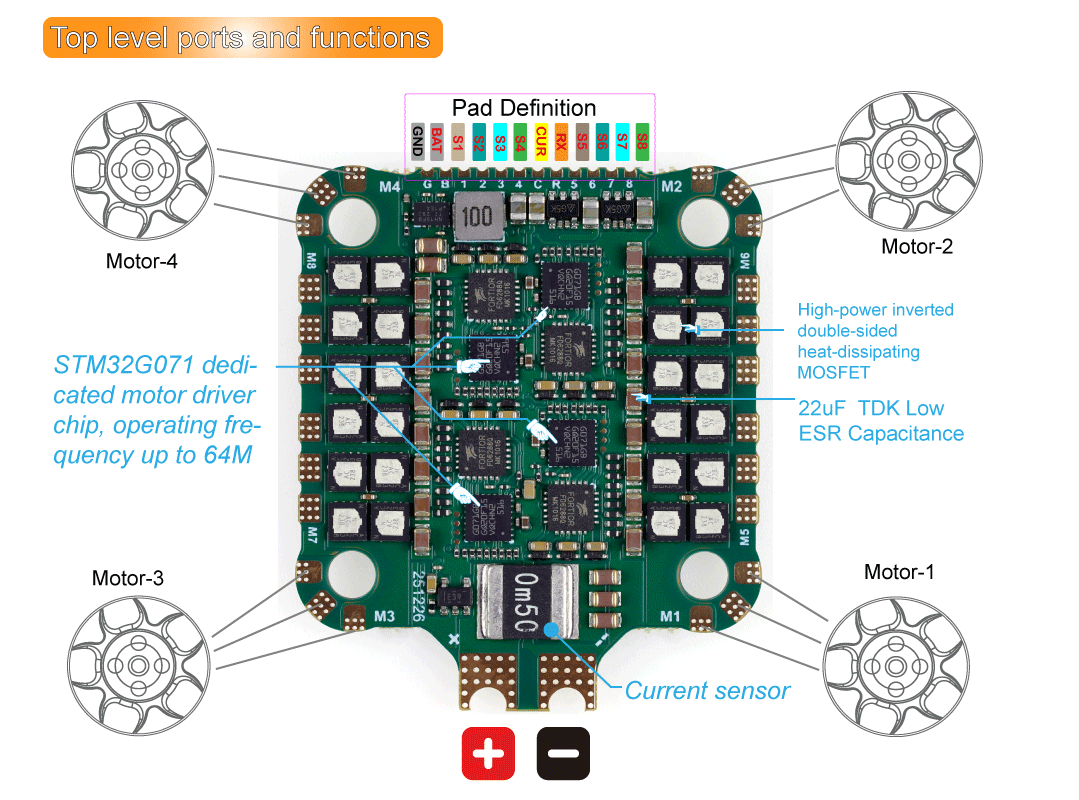

MCU:STM32G071GBU6

Input Voltage: DC 9-40V (3-8S LIPO)
Telemetry Signal: Supported
Hole Size: 30.5*30.5mm, M4
Cooling mode: forced air cooling

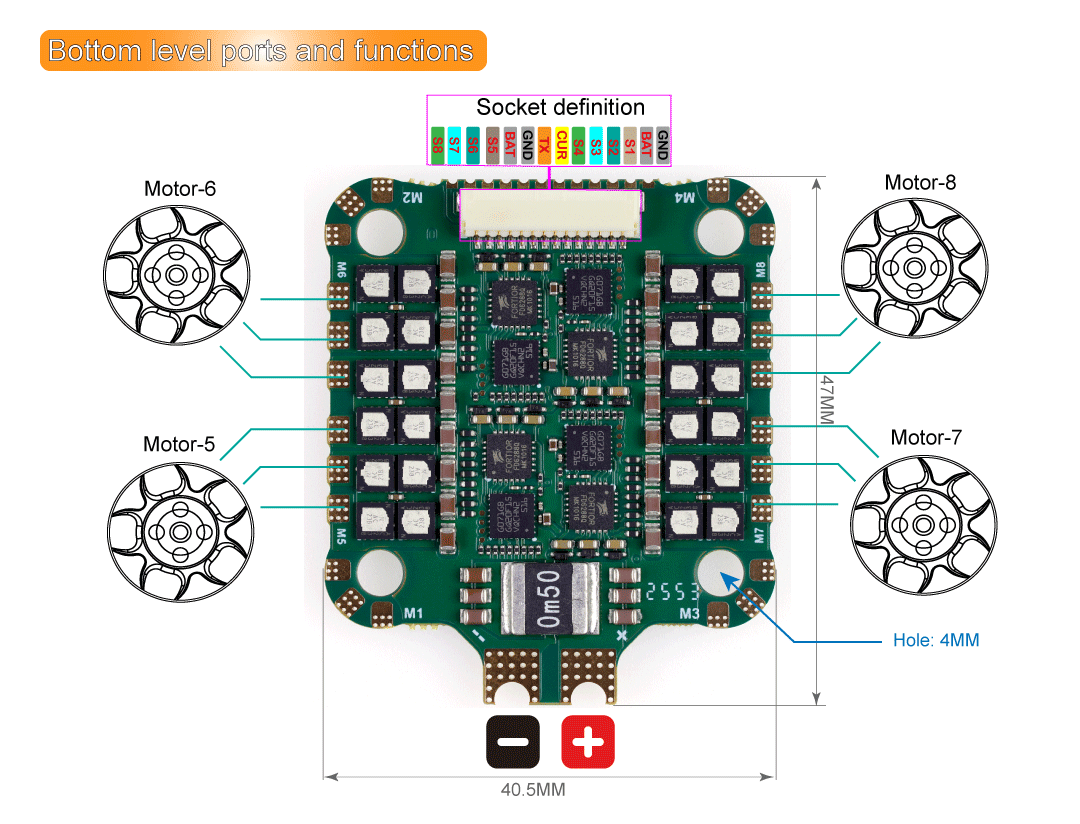

Size: 40.5*51*7mm
Capacitor : 40PCS 22uF/25V MLCC
Voltage/Current : Bus current sensor
